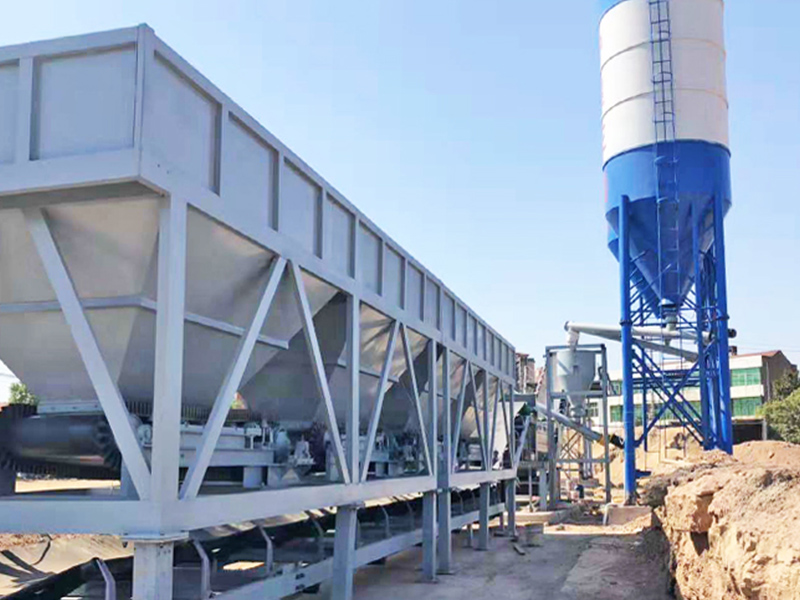

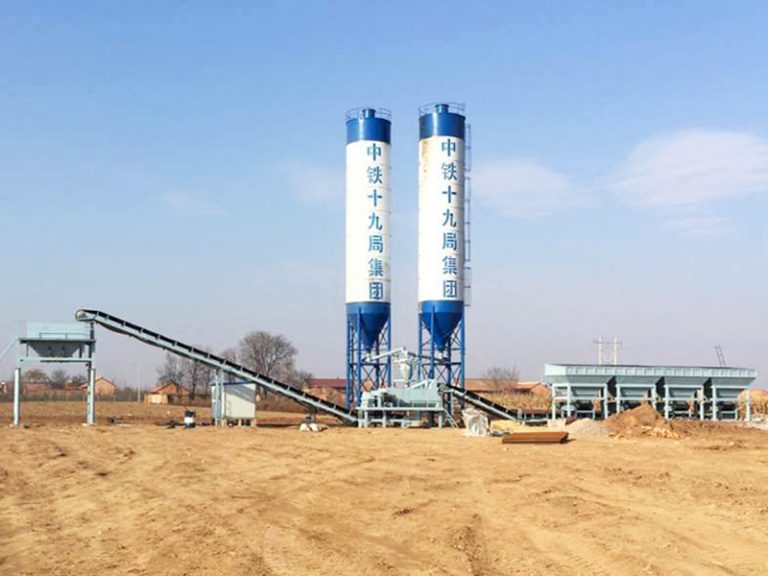

WBZ600 Stabilized Soil Mixing Plant

Description:WBZ600 Soil Cement Mixing Plant( Stabilized Soil Mixing Station) is a kind of modular and detachable mixing equipment. Its rated production capacity is 600 ton/h.

Rated production capacity:600t/H

Total power:168KW

Type of measuring:Volume

Aggregate:±3%

Soil:±2%

product Description

WBZ600 Soil Cement Mixing Plant can use quick lime, slaked lime (moisture content is 10-15%), soil, gravel, fly ash, cement and other raw materials to produce lime soil and other sub base course materials. It is widely applied in the construction of high-speed railway, first-class roads, second-class roads, urban roads, airports, sports ground and other sub base course materials.

Parameter

Model	WBZ300	WBZ500	WBZ600	WBZ800
Rated production capacity	300t/H	500t/H	600t/H	800t/H
Total power	110KW	158KW	168KW	228KW
Type of measuring	Volume	Volume	Volume	Volume
Aggregate	±3%	±3%	±3%	±3%
Soil	±2%	±2%	±2%	±2%
Lime powder, Coal ash	±1%	±1%	±1%	±1%
Cement	±1%	±1%	±1%	±1%
Water	±1.5%	±1.5%	±1.5%	±1.5%
Max motor power	45KW	75KW	90KW	110KW
Aggregate Diameter	≤±60mm	≤±60mm	≤±80mm	≤±100mm
Area covered	45×17㎡	50×18㎡	52×22㎡	58×26㎡
Total weight	39t	51t	54t	59t
Mode ofSpeed regulation	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic

Features

01.

Our plants are modularization designed. Its convenient to take apart, transport, and install. It is in a centralized arrangement and space-saving footprint.

02.

Aggregate batching system adopts electromagnetic governor motor controlled by computer to charge and measuring in a highly accuracy and reliability.

03.

The mixer is two-horizontal shafts forced continuous type with no lining board. The blades are made by hard-wearing chrome alloy with a long service life.

04.

The measuring system uses the special measuring instruments to ensure the measuring accuracy.

05.

All the parts are controlled by computer.

Accessories

The stabilized soil mixing station is mainly composed of mixing system, batching system, conveying system , finished hopper, weighing system,control system and a cement silo.

Twin shaft Continuous Mixing System+

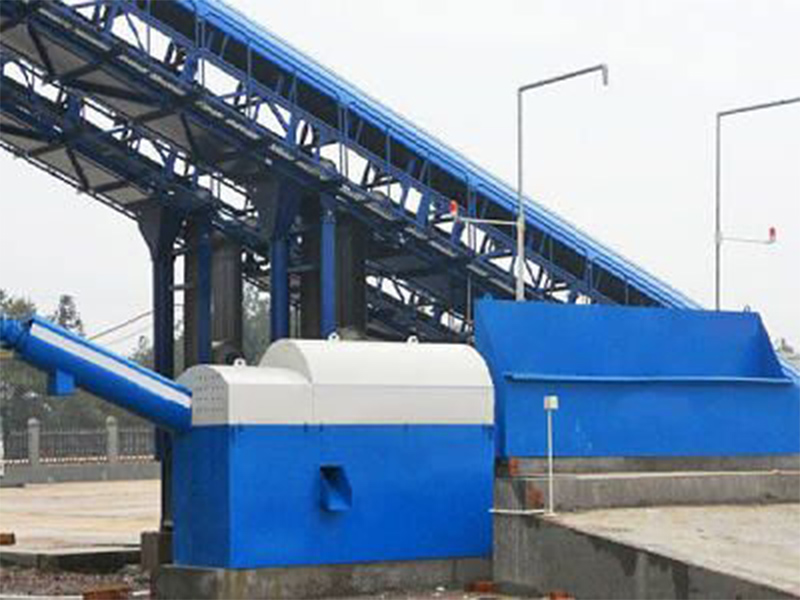

Twin shaft Continuous Mixing System

(1) Long mixing body with large number of blades to ensure mixing evenly (2) Liner-less design, no need worry about replacing the lining board (3) Adopting high-strength blades,continuous mixing can reach more than 100,000tons (4) With large discharge port design to avoid any materials blocked

–

Continuous Aggregate batching system+

Continuous Aggregate batching system

(1)Compact structures, (2)reasonable layout, big capacity of hoppers, low loading height, easy operations, convenient maintenance, accurate weighing system

–

Belt conveyor system and finished hopper+

Belt conveyor system and finished hopper

(1) Flat belt and chevron belt are available for choice (2) Adopting rubber coated drive roller to avoid belt slide (3) Finished hopper capacity range from 6.5 to 11m³，temporary storage for truck loading, discharge height is up to 4m

–

Control system+

Control system

(1)PLC full automatic control system ,platform can be set in english/russia/other language (2)Monitor production in real-time (3)Intelligent management system for task tracking,printing and so on (4)Auto fault detection and auto alarm (5)Equipped with display controller for frequency inverter,easy to operate

–

Cement silo +

Cement silo

The silo is composed of the cover, wall sections, cones and supporting legs.

–

Measurement/weighing system+

Measurement/weighing system

Aggregates & cement weighing scales, accurate weighing

–

Operating Principle

All aggregates like lime, sand, soil, coal ash, and other materials are loaded into batching hoppers by a loading machine. After measuring, the belt feeder transports the aggregates into a mixing device. Meanwhile, stabilizing powders like lime or cement are transferred from a powder material warehouse to the batch hopper by a spiral conveyor, and then moved to the belt feeder by a powder material feeder. All ingredients then go into the mixing device for final processing. Finally, the feeding belt conveyor takes the final product and delivers it to the storage warehouse.
