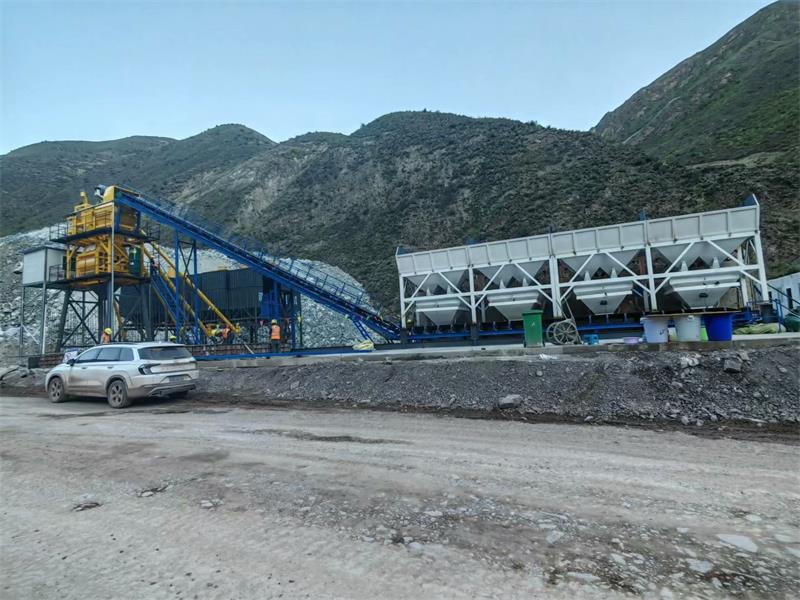

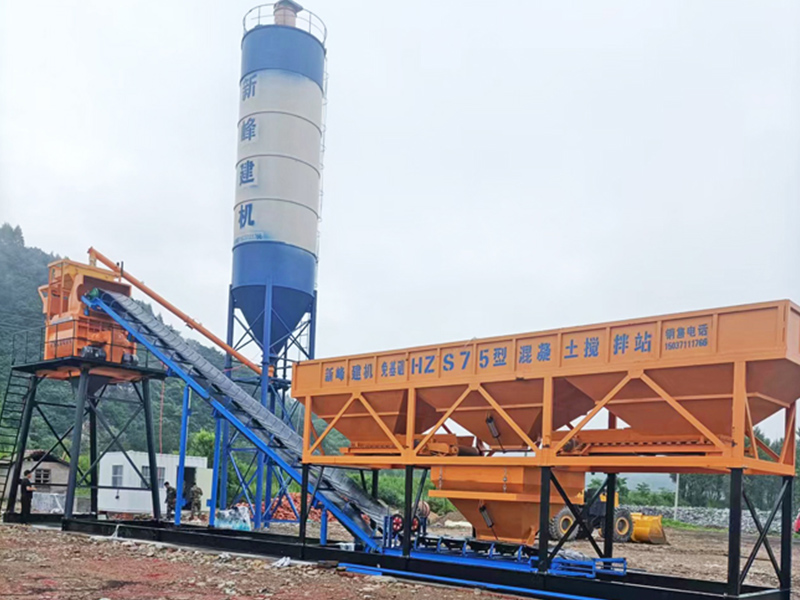

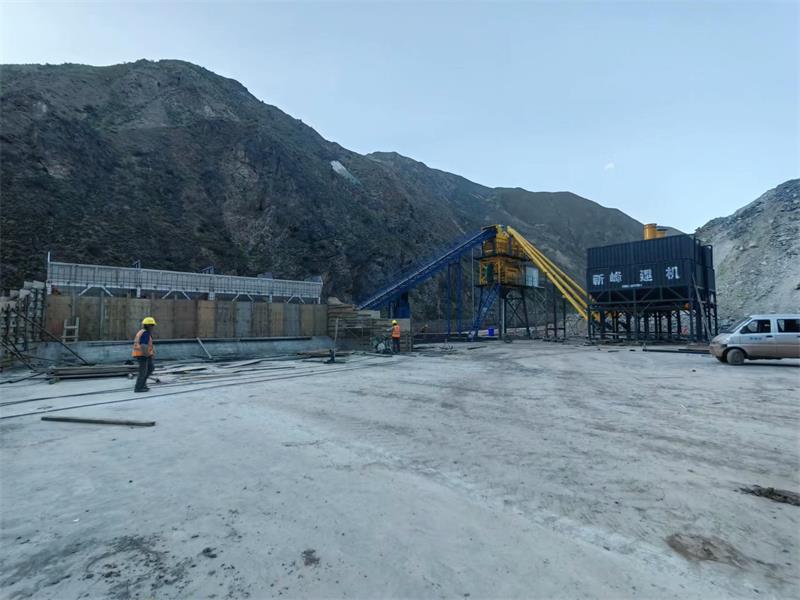

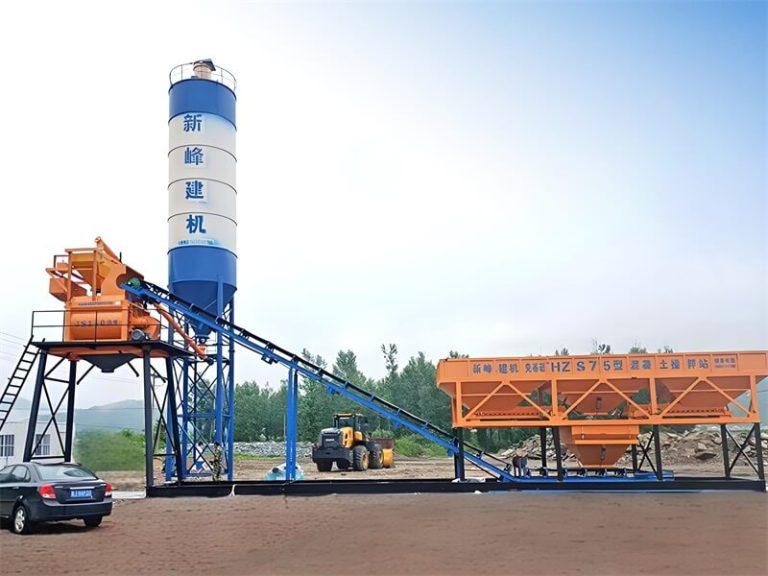

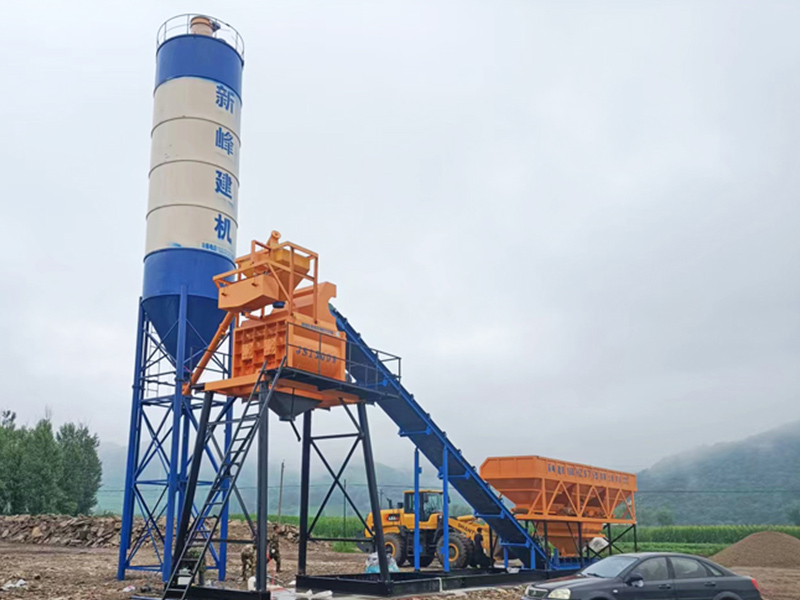

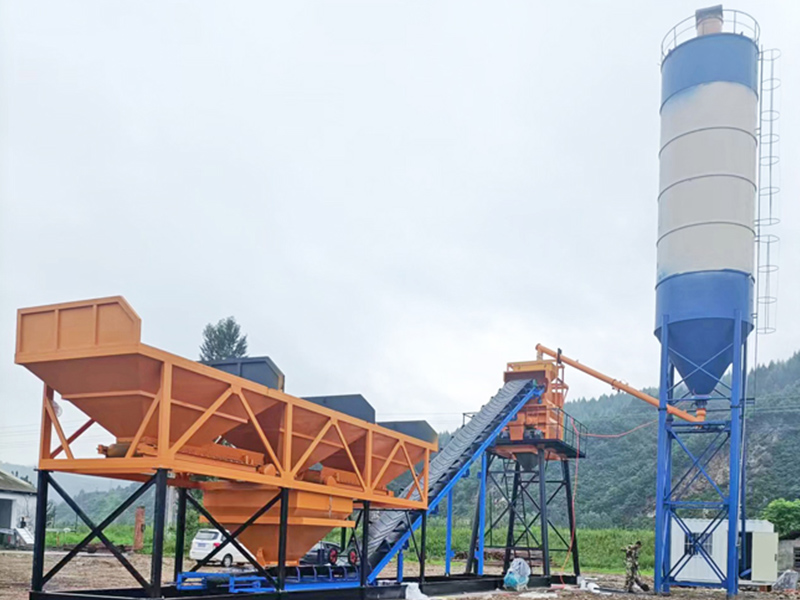

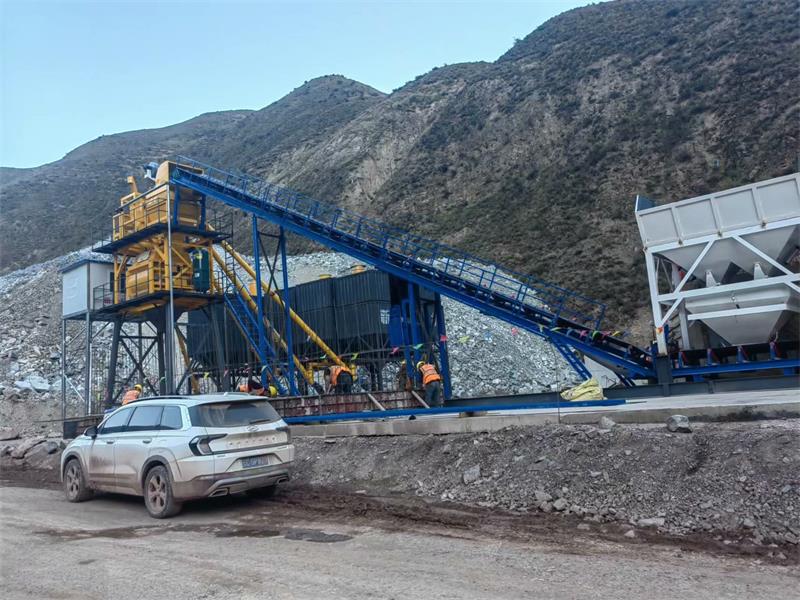

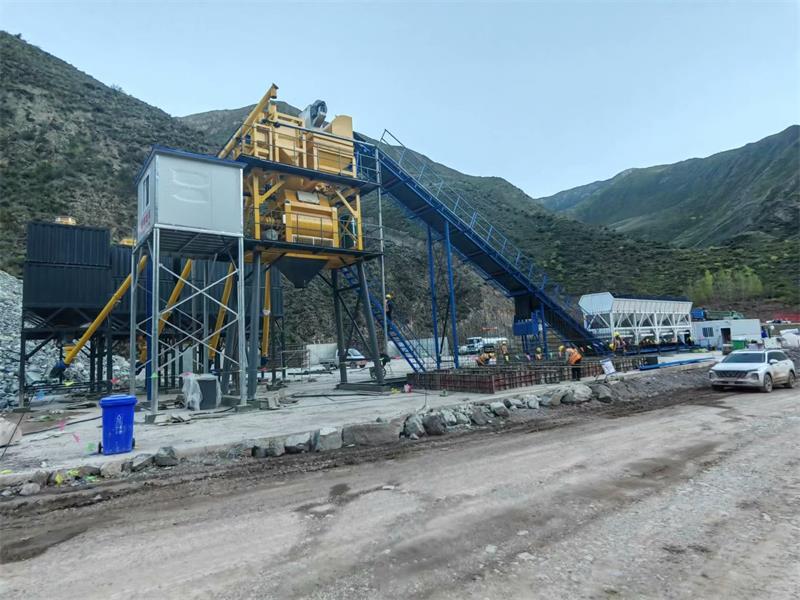

Foundation-free Concrete Batching Plant

Description:This foundation free batching plant is designed based on traditional fixed and traditional mobile concrete batching plants. There is no wheels and pulling mechanism, only added with steel basis (280# I-beam +140# square steel), so the overall design is optimized and upgraded.

Max productivity(m³/h):25-75

Discharging height(m):64.5-118

Working cycle time(s):60

Outline dimension(mm):11693×13060× 17245-17608×12500× 18704

Discharging height (m)3.8

product Description

Foundation free concrete batching plant does not need to dig a deep foundation like a stationary concrete batching plant，but need to make sure the ground hard and flat. It eliminates the process of designing and installing the foundation, and can greatly save the time and basic cost of building the station.

Foundation free concrete batching plant is widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.

Parameter

Model		FHZS25	FHZS35	FHZS50	FHZS75
Global parameter	Maximum productivity (m³/h)	25	35	50	75
	Total power (kw)	64.5	83	96	118
	Discharging height (m)	3.8	3.8	3.8	3.8
	Working cycle time(s)	60	60	60	60
	Outline dimension(mm)	11693×13060×17245	12922×13000×17245	15689×12500×18704	17608×12500×18704
Mixer	Model	JS500	JS750	JS1000	JS1500
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Aggregate Feeding Mode		Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Traction Type		Semi-trailer
Steel Basis		280# I beam +140# square steel
Control Mode		Full Automatic computer PLC Control
Warranty		12months after commissioning
After sale service		on-line technical support, remote control support, and door to door service
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement (m³/min)	1.67	1.67	1.67	1.67
	Motor power	5.5	5.5	7.5	11
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%

Features

01.

Quick installation. Usually, we can save about 60% of installation time (10-15 days) than a traditional concrete batch plant.

02.

Easy to move and transfer to other work sites.

03.

Compact design which is suitable for transportation with containers.

04.

Compulsory twin-shaft mixer is used to make sure the quality of the concrete.

05.

Cost effective ,its price is lower than mobile type with wheels

Currently, we have 25m3/h, 35m3/h, 50m3/h, 60m3/h, 75m3/h, 90m3/h, 120m3/h and 180m3/h foundation free concrete batching plant. Welcome to contact us for details and quotations.

Accessories

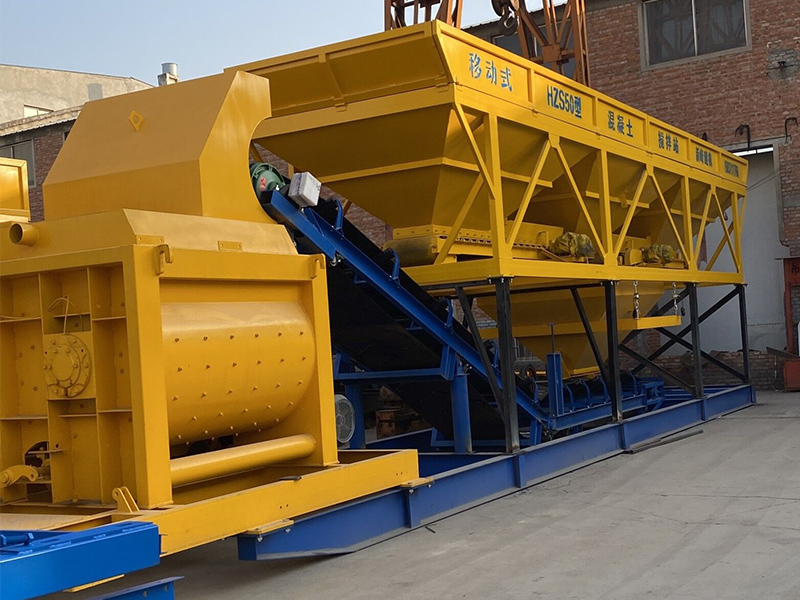

01. Aggregate batching machine+

01. Aggregate batching machine

With steel basis , 280# I-beam +140# square steel, Equipped with an intelligent management system to realize real-time monitoring and data analysis of the production process. It helps to adjust production parameters in time and improve production efficiency.

–

02. Twin shaft concrete mixer+

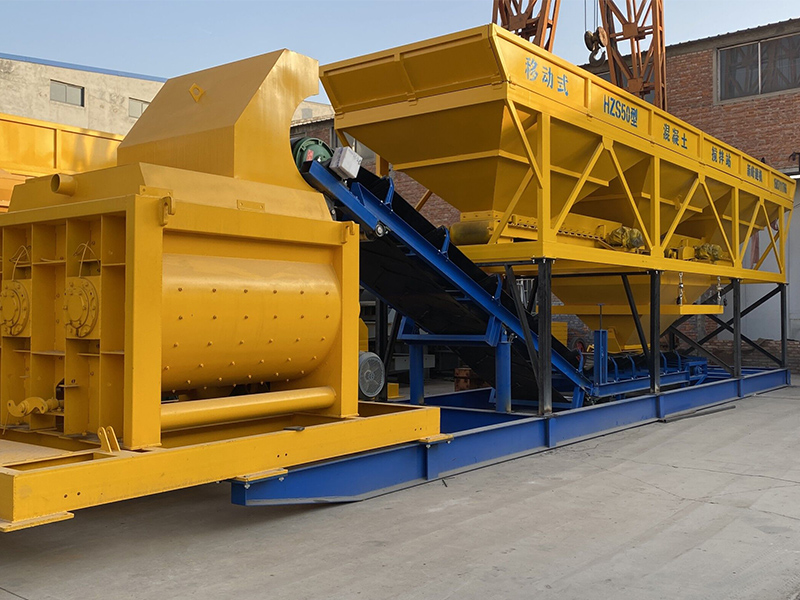

02. Twin shaft concrete mixer

With steel basis , 280# I-beam +140# square steel，introduces advanced mixing technology and is equipped with an efficient mixing system to ensure uniform and stable quality of concrete. It has high production efficiency, strong mixing ability, and strong flexibility.

–

03. Aggregate loading belt conveyor+

03. Aggregate loading belt conveyor

With steel basis , 280# I-beam +140# square steel，Use an imported lubrication system and shaft drive system. All components have reliable quality and stable performance.

–

04. Weighing scales+

04. Weighing scales

Water, cement and additive weighing scales

–

05. Cement silo+

05. Cement silo

Traditional vertical cement silo or horizontal cement silo. Horizontal cement silo is more and more popular because it is very easy to install and no needs foundation

–

06. Screw conveyor+

06. Screw conveyor

–

07. Control system+

07. Control system

Equipped with an automated control system, it can realize fully automatic production operations, improve production efficiency, and reduce labor costs.

–
