product Description

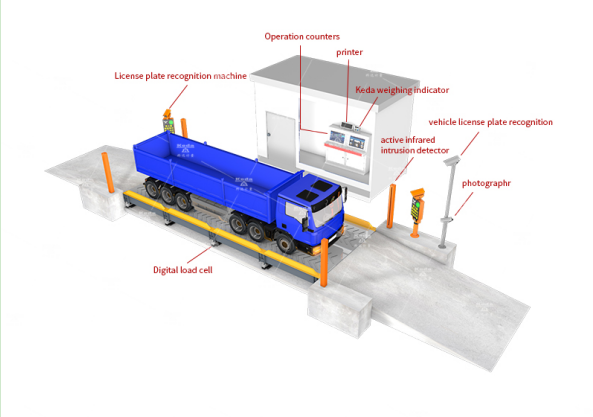

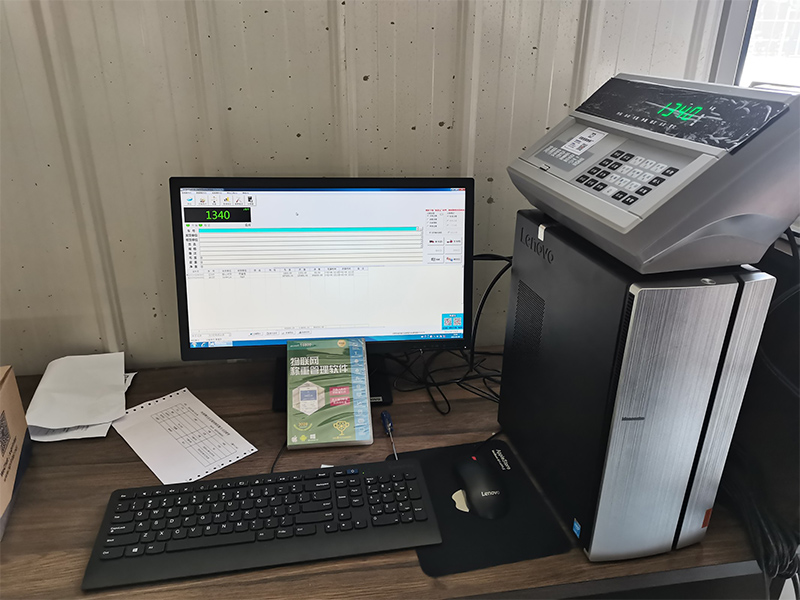

A weighbridge or a truck weighing scale typically consists of modular steel platforms, Bridge Loadcell, Digital Weighing Indicator, a Junction box, External Display, Signal line, Automatic control System and Computer Printer. When a vehicle drives onto the platform, the load cells detect the weight and send a signal to the weight indicator or computer, which displays the weight on a screen. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated.

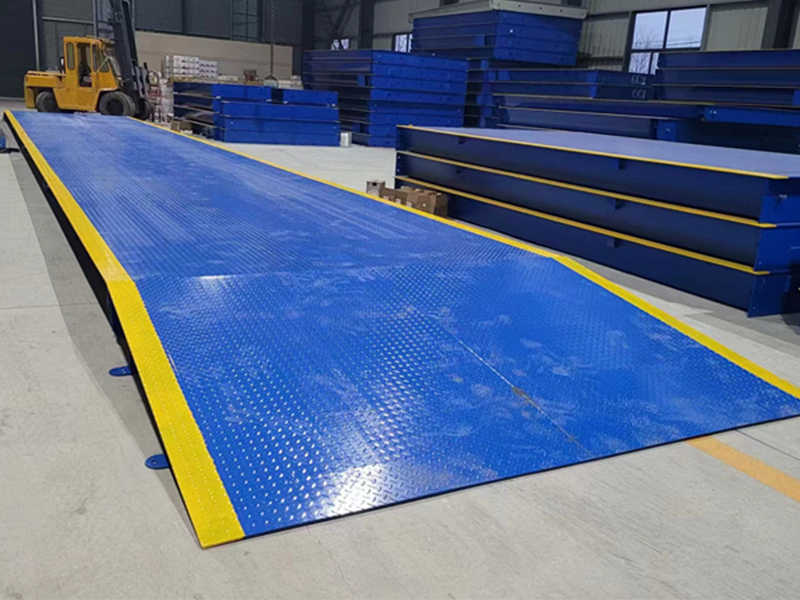

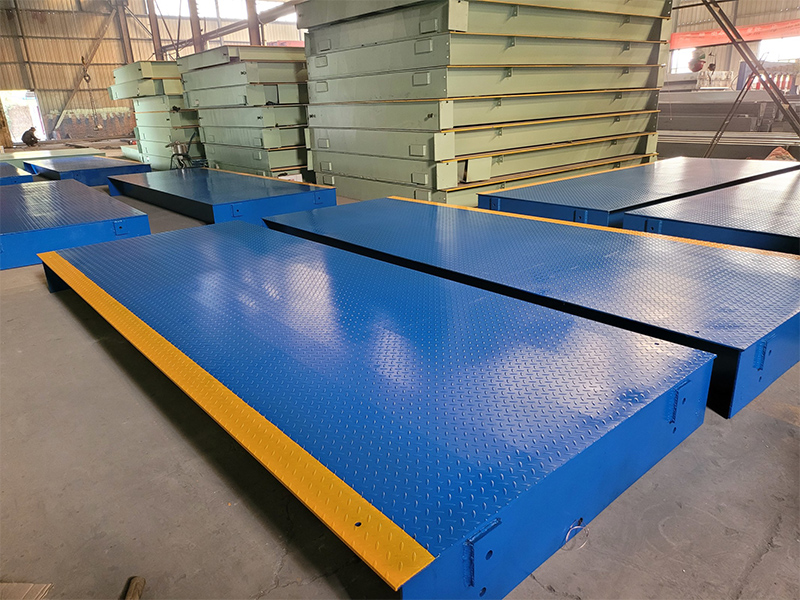

The main beam is high-strength U-beam structure. The weighing platform panel is made of Q-235 flat steel, joined to a closed box-type structure, which is strong and reliable.
The welding process adopts unique fixture, precise space orientation and measurement technology.The advanced welding technology effectively ensure the flatness of such a large weighing platform.
A weighbridge or a truck weighing scale finds applications in industries like logistics, mining, quarrying, transportation, etc. It is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
Parameter
| Model | Accuracy | Weighing Platform Size | Max. Weighing(ton) | Mini.Weighing(kg) | Resolation (kg) |
| SCS-20 | III | 2.2×5 | 20 | 100 | 5 |
| SCS-30 | III | 2.5×6 | 30 | 100 | 5 |
| SCS-100 | III | 3×9 | 100 | 400 | 10 |
| SCS-100 | III | 3×12 | 100 | 1000 | 20 |
| SCS-100 | III | 3×16 | 100 | 1000 | 20-50 |
| SCS-100 | III | 3×18 | 100 | 1000 | 20-50 |
| SCS-120 | III | 3×16 | 120 | 1000 | 20-50 |
| SCS-120 | III | 3×18 | 120 | 1000 | 20-50 |
| SCS-150 | III | 3×16 | 150 | 1000 | 50 |
| SCS-150 | III | 3×18 | 150 | 1000 | 50 |
| SCS-200 | III | 3×16 | 200 | 1000 | 50 |
| SCS-200 | III | 3×18 | 200 | 1000 | 50 |
| SCS-200 | III | 3×21 | 200 | 1000 | 50 |
Features
- The digital truck scale has minimum and simple connections.
- Digital truck scale offers real-time diagnostics due to the presence of a terminal connector and weight indicator.
- There are fewer repairs and maintenance measures that need to be taken with digital truck scales, only need to replace the sensors after long time use.
- Also, these truck scales are very easy to set up and install.
- Digital truck scales are easy to read even for a layman and it helps in getting a more accurate reading as well when it comes to nothing down data or keeping track of it.
Which Weighbridge is Right for Your Business?
Choosing the right weighbridge for your business depends on several factors, including your application, the type of vehicles you weigh, and the available space. Pit-mounted weighbridges are ideal for limited space and where a ramp is not feasible, while surface-mounted weighbridges are the most common type and suitable for most applications.

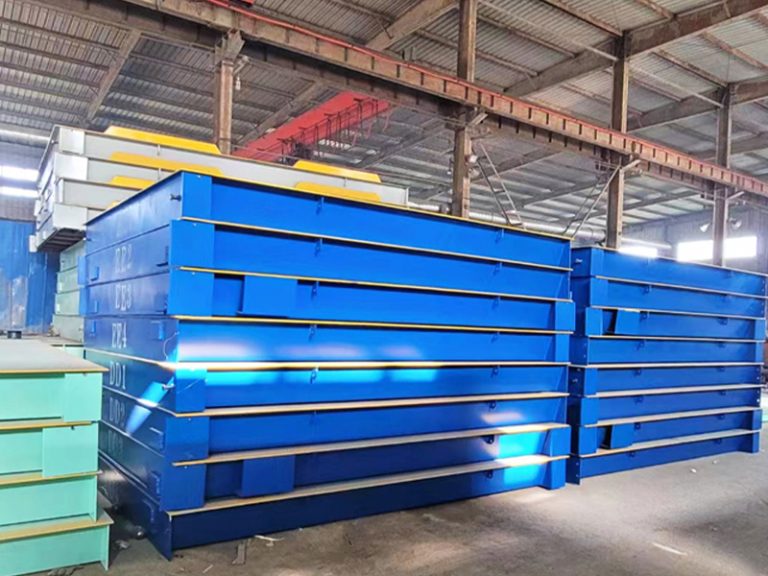

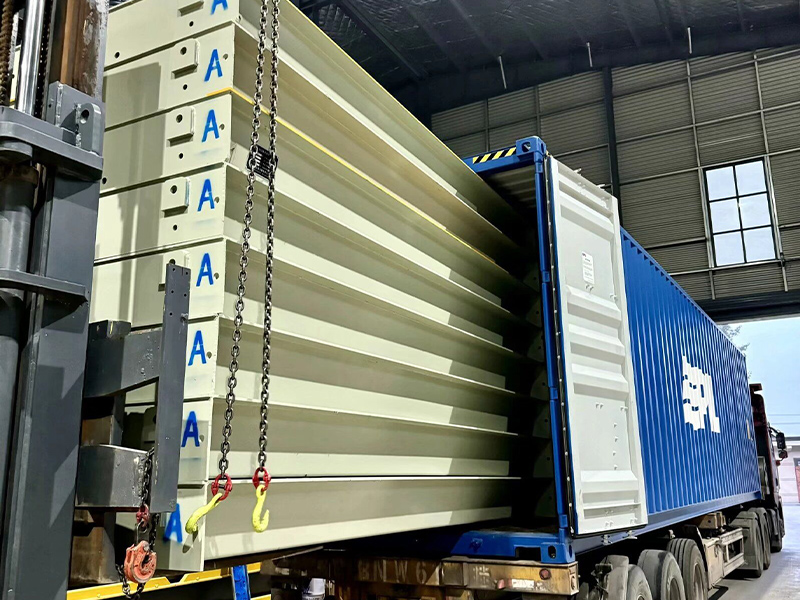

Factory Strength
