product Description

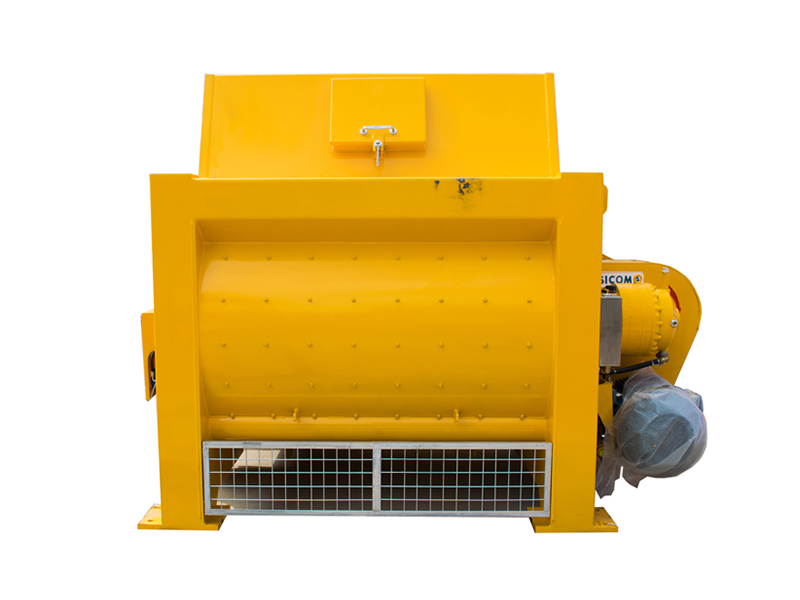

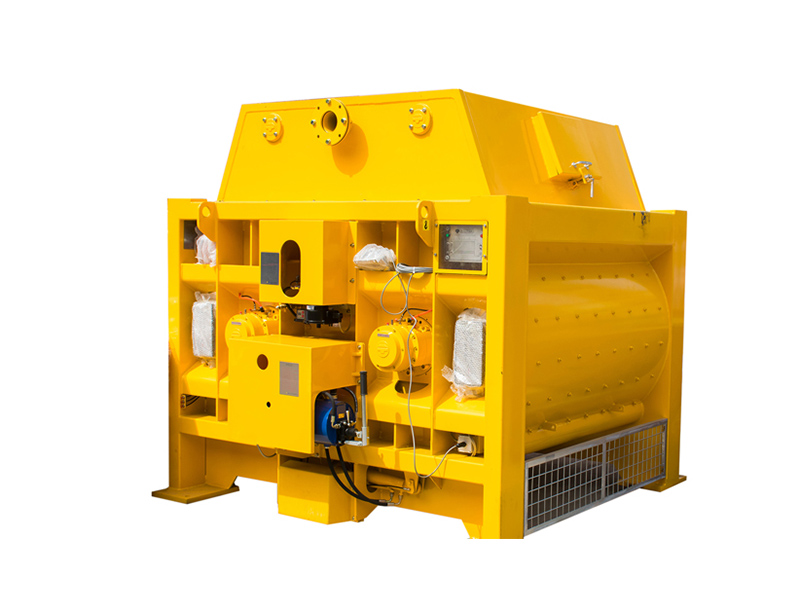

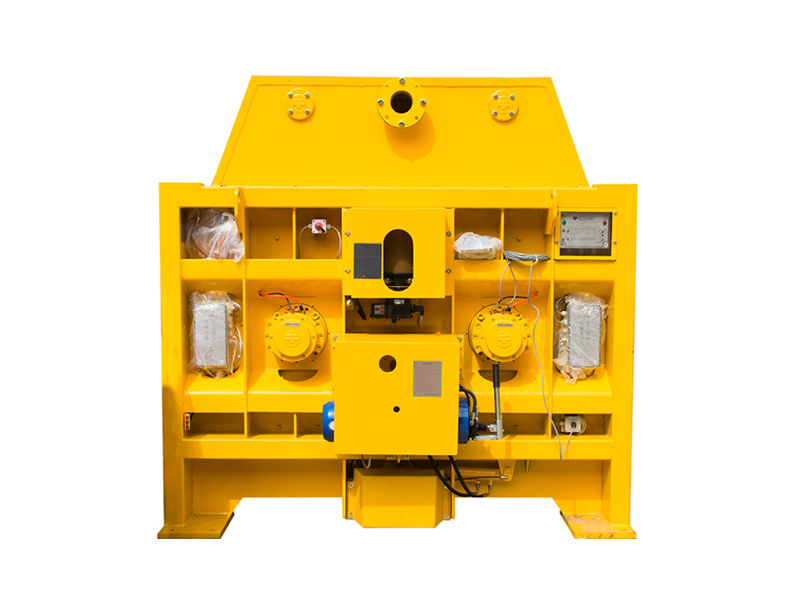

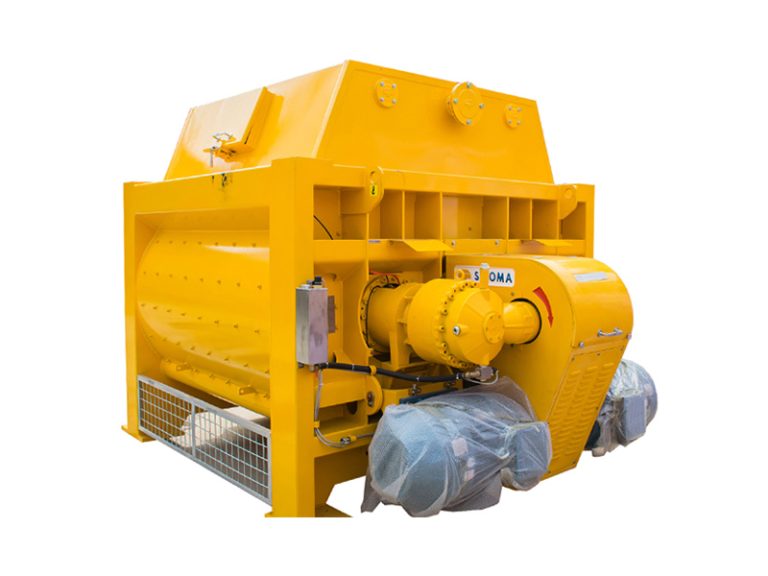

JS3000 concrete mixer is a belt feeding twin-shaft concrete mixer with 60s working cycle time and high mixing efficiency. Each batch can discharge standard 3 cubic meters of concrete. This machine can mix various grades of concrete, lightweight aggregate concrete and mortar.
JS3000 concrete mixer (3 cubic meter concrete mixer) has dual advantages as a single independent operation and also can work with the PLD4800 batching machine to make 180m³/h concrete mixing plant , suitable for all kinds of large and medium prefabricated factory and Large-scale industrial and civil construction projects such as roads, bridges, water conservancy, and docks.
Parameter
| Model | JS3000 | |
| Discharge capacity(L) | 3000 | |
| Charge capacity(L) | 4800 | |
| Theory productivity(m³/h) | ≤180 | |
| Max. aggregate diameter(mm) | ≤80/120 | |
| Working cycle time(s) | 60 | |
| Total weight(kg) | 9200 | |
| Outline dimension(mm) | Transporting | 4050×2680×2150 |
| Operating | ||
| Agitating vane | Rotational speed (r/min) | 21 |
| Count | 2×10 | |
| Agitator motor | Model | Y280L–6 |
| Power(KW) | 2×55 | |
| Hoist motor | Model | |
| Power(KW) | ||
| Pump motor | Model | |
| Power(KW) | ||
Features
01.
Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.
02.
Unique mixer monitoring system to monitor working conditions of gearbox,discharge door, pump, and electronic lubrication pump.
03.
Multi-pipe water spraying system to ensure even water distribution and increase spray service area.
04.
With Dc24 Grease pump system special for concrete mixer, self-programmed running time,waterproof ,dustproof, super performance.
05.

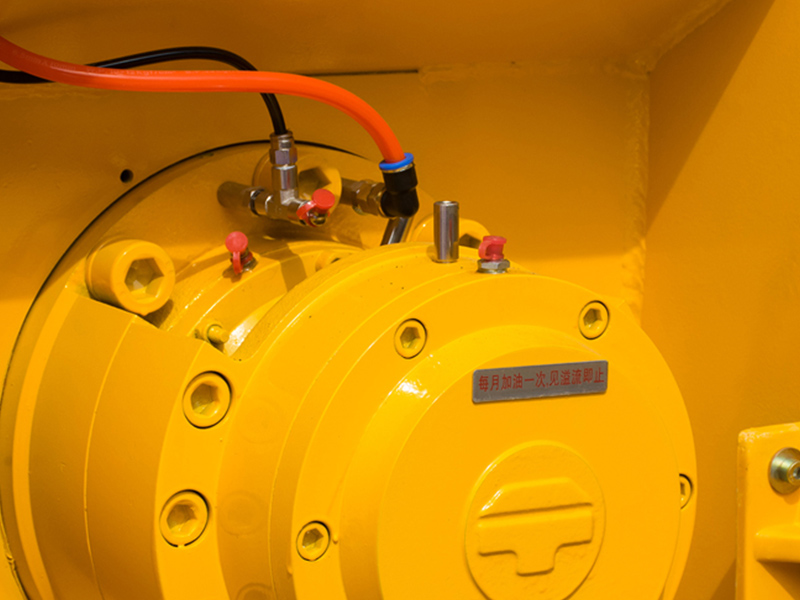

Reinforced gearbox processed with military materials by high precision technology, high load capacity and longer service life.
06.
High quality and resistant alloy arm, the service life is 3-5times more than normally arm.
