product Description

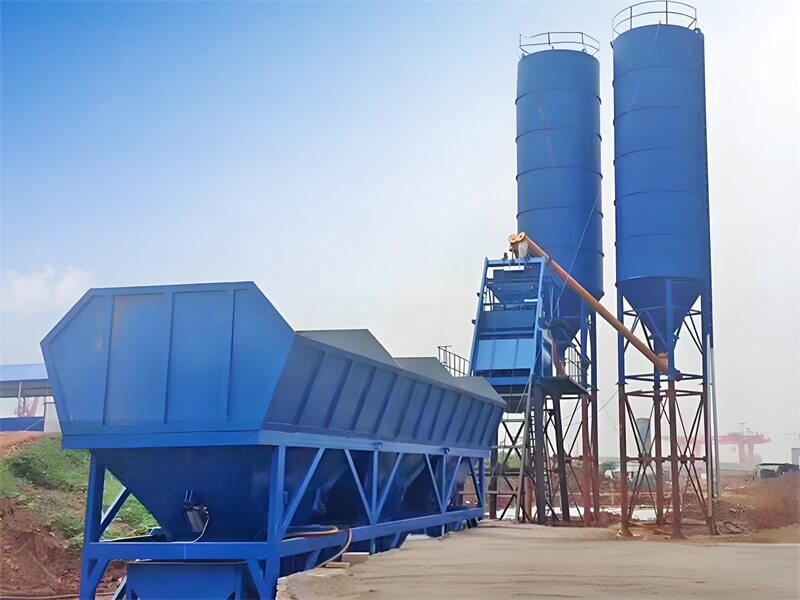

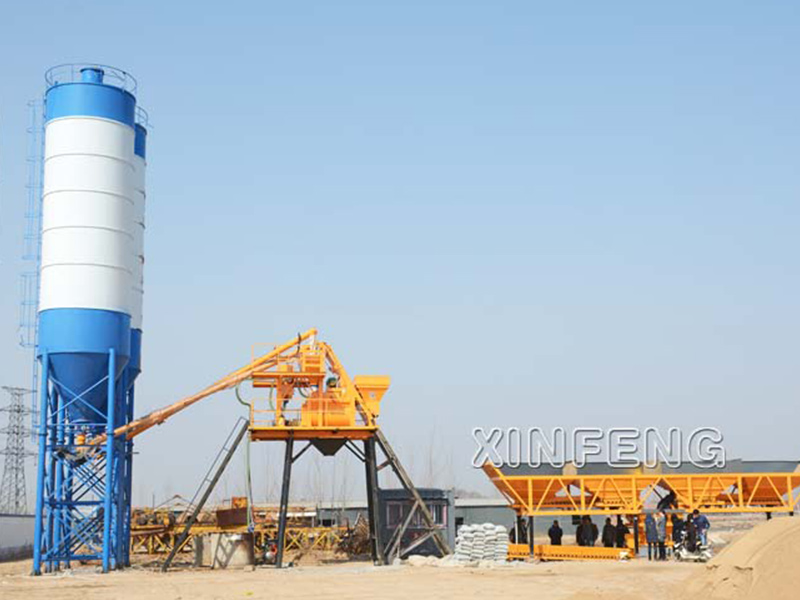

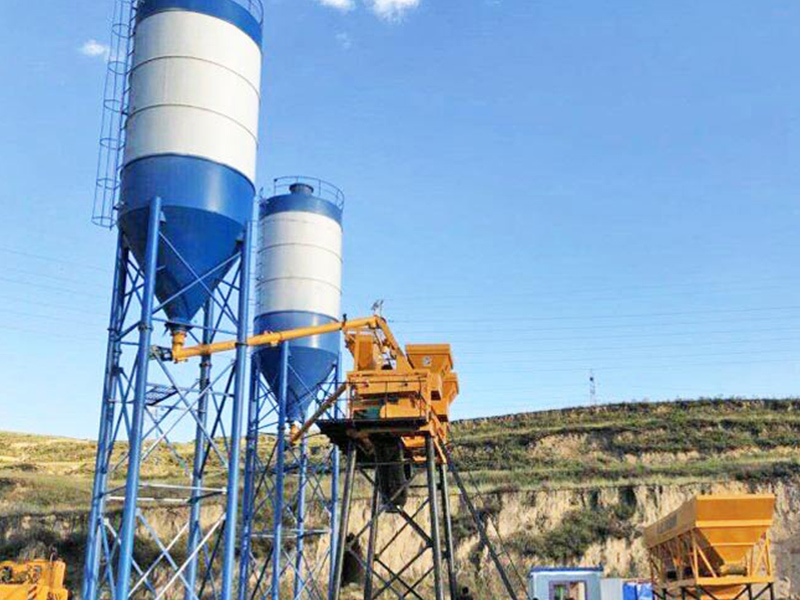

A skip hoist type concrete batching plant is characterized by the use of a skip hoisting hopper to feed aggregates and sand into the electrical cement mixer.
Skip hoist type Concrete Batching Plant is a small concrete plant with models of HZS25/HZS35/HZS50/HZS75, it mainly produce ready-mixed concrete and mortar, also popular use in concrete block production lines.
For the construction or upgrading of rural roads, small construction projects, skip hoist type concrete batching plant is an excellent choice, it can reduce initial investment costs and achieve rapid commissioning and return of funds.

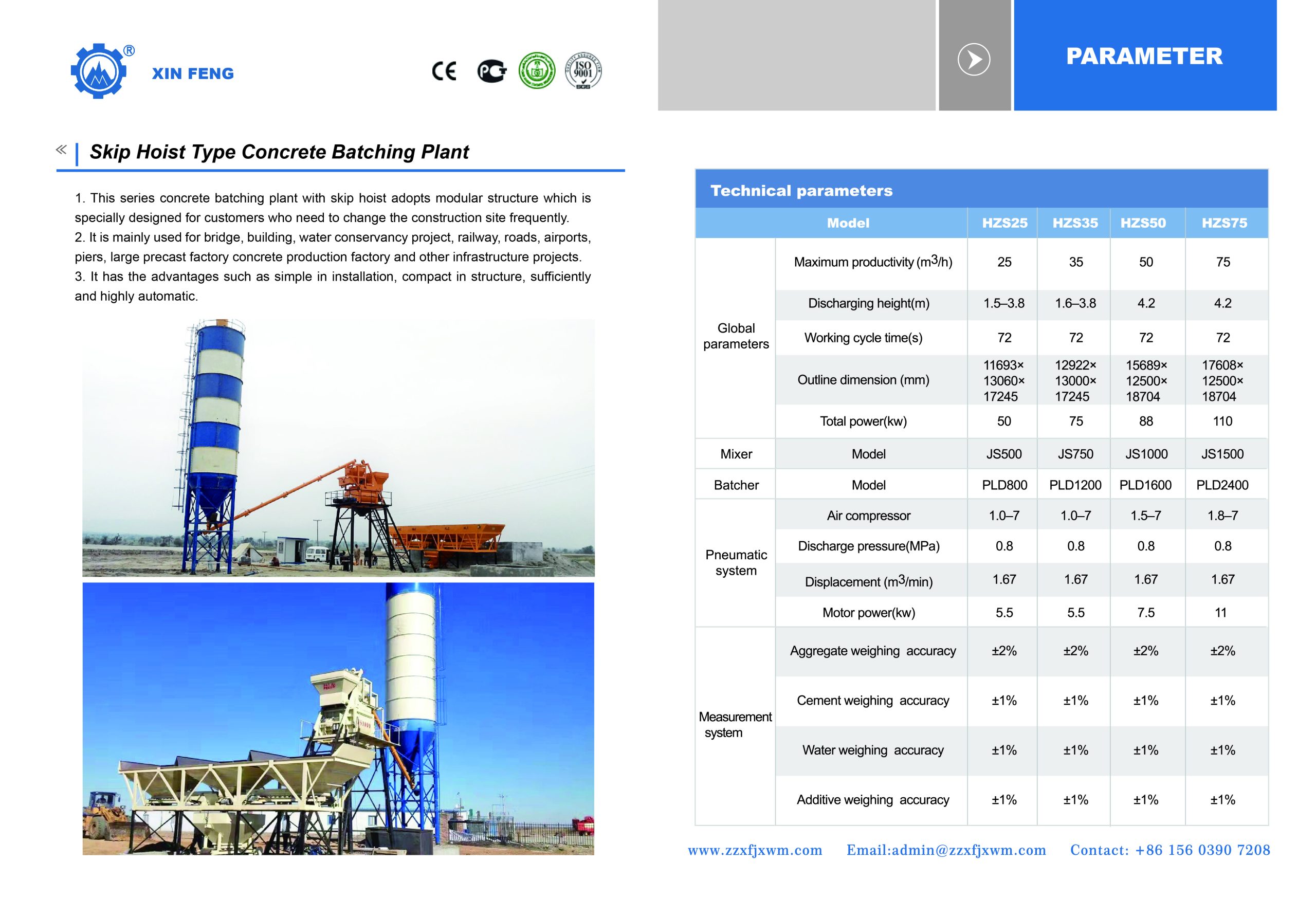

Parameter
| Model | HZS25 | HZS35 | HZS50 | HZS75 | |
| Global parameter | Max productivity(m³/h) | 25 | 35 | 50 | 75 |
| Discharging height(m) | 1.5–3.8 | 1.6–3.8 | 3.8 | 3.8 | |
| Working cycle time(s) | 72 | 72 | 72 | 72 | |
| Outline dimension(mm) | 11693×13060×17245 | 12922×13000×17245 | 15689×12500×18704 | 17608×12500×18704 | |
| Total Power(kw) | 57.25 | 75 | 88 | 150 | |
| Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
| Batcher | Model | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Aggregates feeding Mode | Skip hoist | Skip hoist | Skip hoist | Skip hoist | |
| Pneumatic system | Air compressor | 1.0–7 | 1.0–7 | 1.5–7 | 1.8–7 |
| Discharge pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Displacement(m³/min) | 1.67 | 1.67 | 1.67 | 1.67 | |
| Motor power | 5.5 | 5.5 | 7.5 | 11 | |
| Measurement system | Aggregate weighing accuracy | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Water weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Additive weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Cement silo Advice | 1x50t | 1x100t | 1x100t | 2x100t | |
| Loading Advice(1silo included) | 1*40HQ container | 1*40HQ container | 2*40HQ containers | 2*40HQ containers | |
Skip hoist type concrete batching plant Features compared to belt type batching plant
01.
Cost-saving.
02.
Small footprint, Easy to install.
03.
Easy to move to other job sites.
04.
Labor-saving.
