product Description

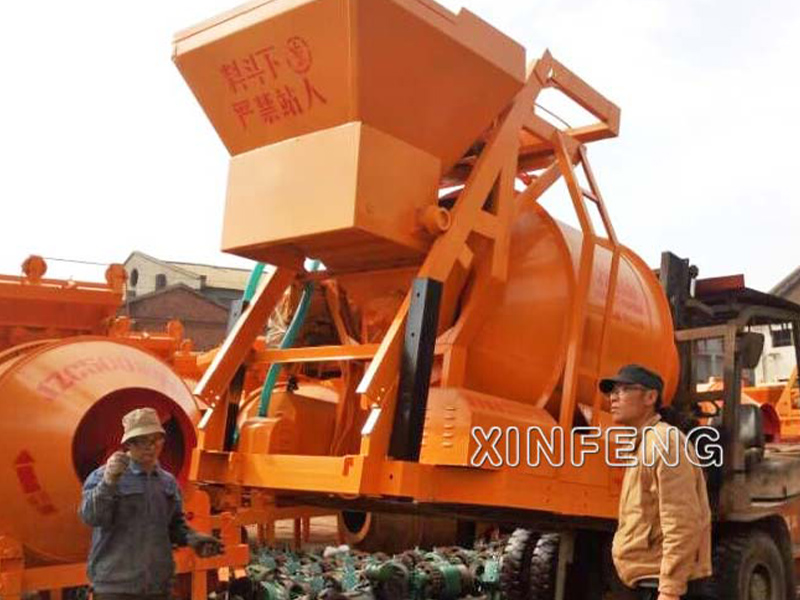

JZM mortar mixers are self falling type bipyramid reversed discharge concrete mixing machine. The mixing drum is driven by friction between rubber pad and riding wheel. In working style, clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging.
JZM series mortar mixer is mainly composed of mixing drum, mixing device, transmission system, feeding and discharging device and other parts. The working principle of cement mixer is mainly to fully mix materials such as cement, sand, stone, water and other additives through mechanical force to prepare uniform concrete.
JZM series mortar mixer can be driven by electric or diesel engine, to meet the requirements of different construction conditions, it also have lots of advantages such as compact structure , smooth working , stable transmission , convenient operation , good mixing quality, high production and high automatic procedures.
Parameter

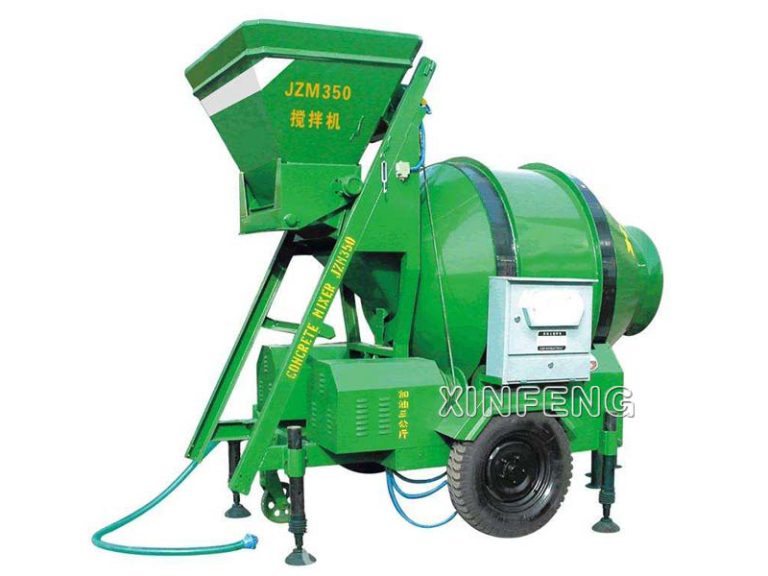

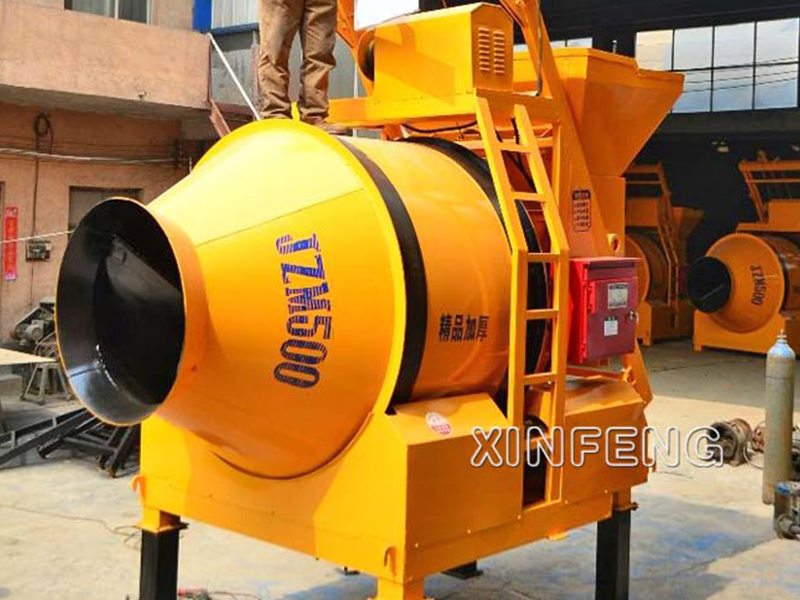

| Model | JZM350 | JZM500 | JZM750 | |
| Nature of work | Discharge capacity | 350L | 500L | 750L |
| Feeding capacity | 560L | 800L | 1200L | |
| Productivity | 13 m³/h | 18-20m³/h | 30-35m³/h | |
| Mixing drum rotating speed | 15 r/min | 15 r/min | 12.26r/min | |
| Max.aggregate particle | 60mm | 60mm | 80mm | |
| Precision of water supply | ≤2% | ≤2% | ≤2% | |
| Motor | Agitator motor | 5.5KW | 2×5.5KW | 2×7.5KW |
| Lifting motor | 4.5KW | 5.5KW | 7.5KW | |
| Pump motor | 0.75KW | 1.1KW | 1.1KW | |
| Tire specifications | 650-16 | 700-16 | 750-16 | |
| Maximum towing speed | 20km/h | 20km/h | 20km/h | |
| Outline dimension (L*W*H) | 3800*2050*2690 | 5710*2350*5050 | 6216*2300*6060 | |
