product Description

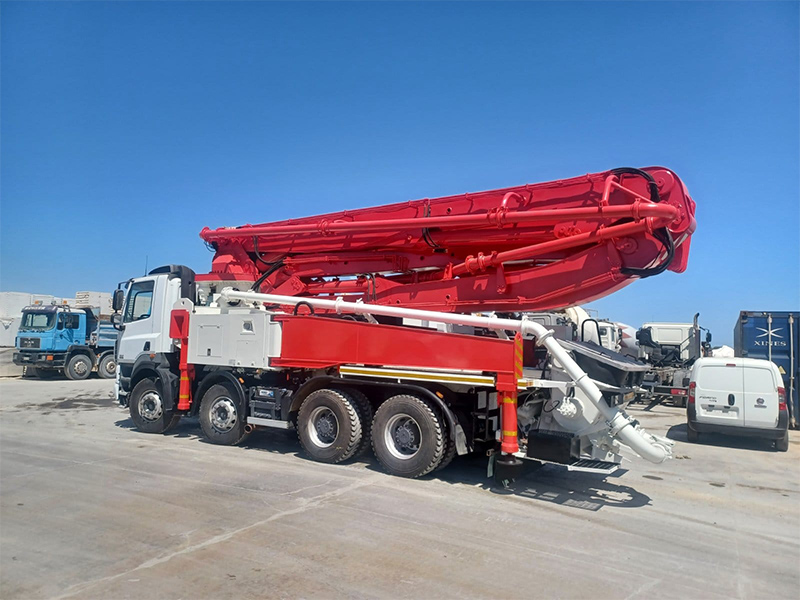

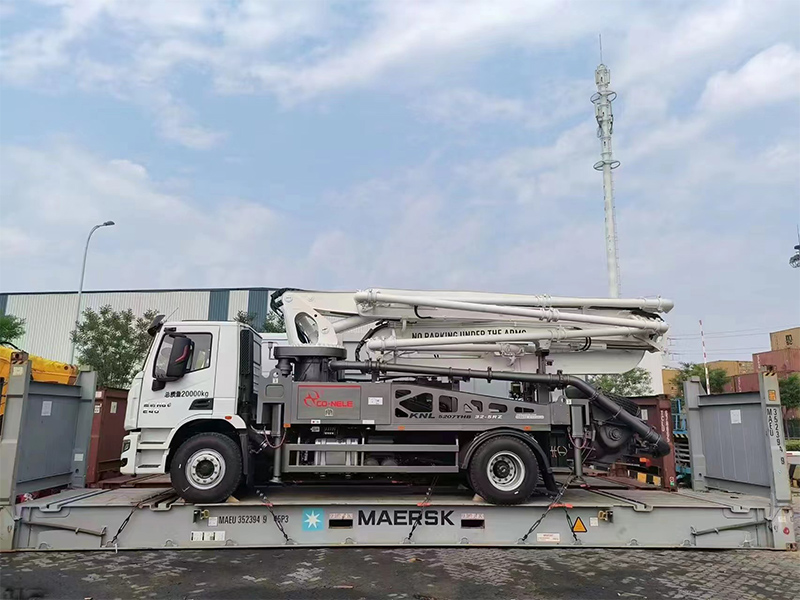

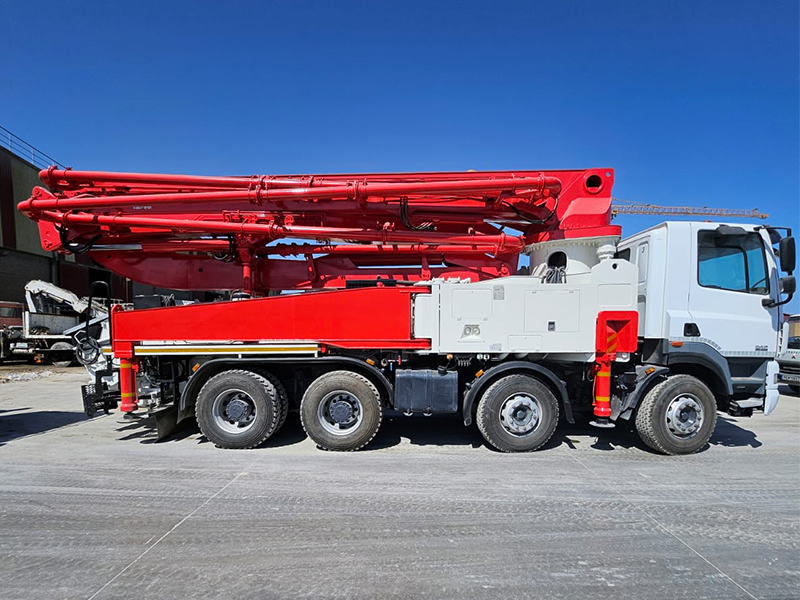

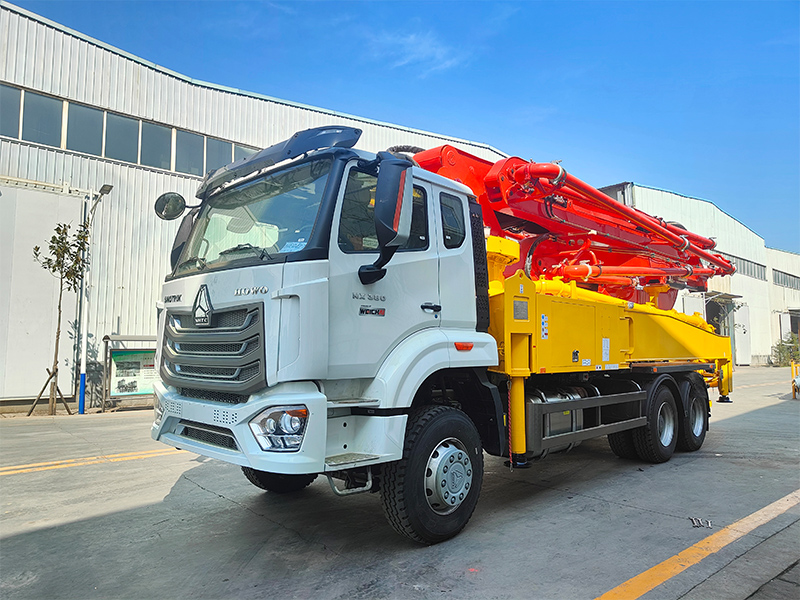

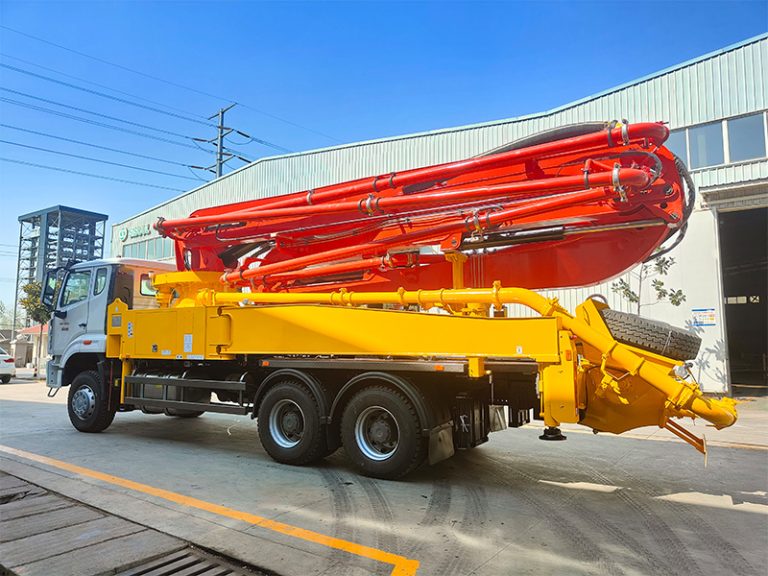

A common type of concrete pump for large scale construction projects is known as a boom concrete pump, because it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately. It is attached to a truck or a semi-trailer. Boom pumps are capable of pumping at very high volumes and are less labor intensive to operate when compared to line or other types of concrete pumps.
Concrete Boom pump truck is combined with high reliability, economy, safety and durability. It has the greatest collocations for the chassis system, power system, control system, hydraulic system and pumping system. With the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis, equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck, So it is more flexible, reliable, stable and safe. It is the top-choice concrete equipment widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.Our concrete mixer pump is intelligently controlled to achieve the perfect and high efficient concrete mixing and conveying, it features compact structure, stable concrete pumping, energy saving, high efficiency, flexible movement and easy operation, etc.A weighbridge or a truck weighing scale finds applications in industries like logistics, mining, quarrying, transportation, etc. It is the ideal choice for weighing trucks, trailers, semi-trailers, container trucks, dump trucks, agricultural vehicles and other heavy-duty vehicles.
38/39m Concrete Pump Truck Main Parameter
| Class | Item | Unit | SINOTUK 38m(C5H) | HOWO 39m |
| Full equipment | Mode | KNL5233THB 38X-5RZ | KNL5235THB 39-5RZ | |
| Chassis | Mode | ZZ5236N521GF1 | ZZ5237N521GF1 | |
| Manufacturer | SINOTUK | HOwO | ||
| Wheelbase | mm | 5200 | 5200 | |
| Engine | Mode | MC07.31-60 | MC07.31-60 | |
| Rated power | KW/(r/min) | 228/2200 | 228/2200 | |
| Emission standards | Chinese 6 | Chinese 6 | ||
| Pumping | Max.Theor.output(highlow pressure) | m³/h | 66/111 | 110 |
| Max.Theor.concrete output Pressure | MPa | 9.5/5.6 | 8 | |
| Concrete cylinder dia. ×stroke | mm | φ230X1650 | φ230X1650 | |
| Feeding height | mm | 1400 | 1400 | |
| Placing boom | Structure type | 5RZ | 5RZ | |
| Placing maximum height/depth/radius | m | 38/29/34 | 38.1/23.1/35.1 | |
| Slewing angle | ±270° | ±360° | ||
| Other | High and pressure switch-over | Electric automatic | ||
| Displacement control | Electric proportion controlling | |||
| Lubrication mode | Manua and hydraulic | |||
| Full equipment | Overall dimensions | mm | 10400×2550×3800 | 10500×2550×3740 |
| Truck Chassic Parameter | Chassis Model | ZZ5236N521GF1 | ZZ5237N521GF1 | |
| Engine Model | SINOTUK | HOwO | ||
| Engine Power | 5200 | 5200 | ||
| Emission Standards | National 6 | National 6 | ||
| Rated Power | 228/2200 | 228/2200 | ||
52m Concrete Pump Truck Main Parameter
| Class | ltem | Unit | SITRAK 52m |
| Full equipment | Mode | KNL5352THB52-6RZ | |
| Chassis | Mode | SITRAK 6×4 | |
| Manufacturer | sinotruk | ||
| Wheelbase | mm | 4650+1400 | |
| Engine | Mode | MC11.44-60 | |
| Rated power | KW/(c/min) | 327KW | |
| Emission standards | National 6 | ||
| Pumping system | Max.Theor.output | m³/h | |
| Max.Theor.concrete output Pressure | MPa | 10MPa | |
| Feeding height | mm | 1480 | |
| Pacing boom | Stucturetype | 52-6RZ | |
| Maximum placing height | m | 51.4 | |
| Pacing boom maxradius | m | 46.4 | |
| Slewing angle | ±360° | ||
| Outrigger | Outiggertype | Front X-leg + rear swing leg | |
| Outiggerspan | mm | 9650×10150×9820 | |
| Fullequipment parameter | Overalldimensions | mm | 12680×2550×4000 |
Features
- Full Hydraulic Control Technology:
Fast fault location, saving time more than 50% in fault detection. - Electric control system:
Simple operation, easy maintenance, low failure rate, Main electric components adopts Schneider imported from France, high reliability and automation.
Panel control and wireless remote devices are both equipped and easy to operate. Appollo wireless remote controller accords with the principles of human engineering design with attractive appearance, easy operation and high flexibility, Multiple alarming devices ensure machine working with high security. - SAFETY:
Hydraulic Oil Level Auto-Detection and Radiating Technology
Auto-detect hydraulic oil and temperature, protecting hydraulic system.
Intelligent Safety Technology
All weld lines by 100% nondestructive flaw detection. - HIGH EFFICIENCY:
Full Hydraulic Commutation Technology
Saving commutation time of 10% ,increasing the pumping efficiency of 20%.
Advance jib structure Technology
Flexible and efficient placing,No blind angle. - Energy saving: Double-Engine System
The powerful pumping performance with a small footprint makes it ideal for restrictive job sites. Pump from the truck with rotation bearing slewing for precise control of concrete flow, or fly the boom to a placing tower with the quickest and easiest truck-to-tower conversion. The pump features an exclusive free flow hydraulic system that outperforms other pumps in the market. It guarantees higher output and lower costs when it comes to maintenance. Its intelligent, valve-less monitoring system takes oil into the drive cylinders without loss of pressure. This enhances the pump’s service life while increasing power and convenience.
