product Description

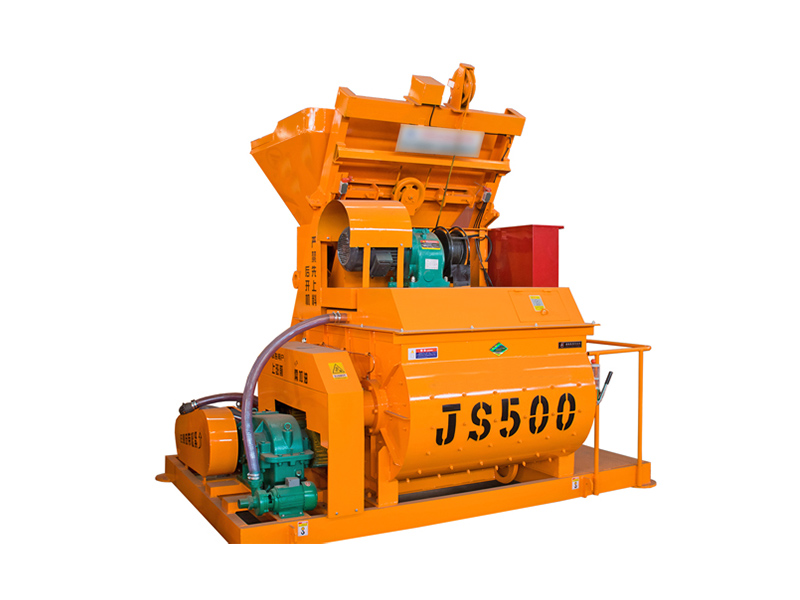

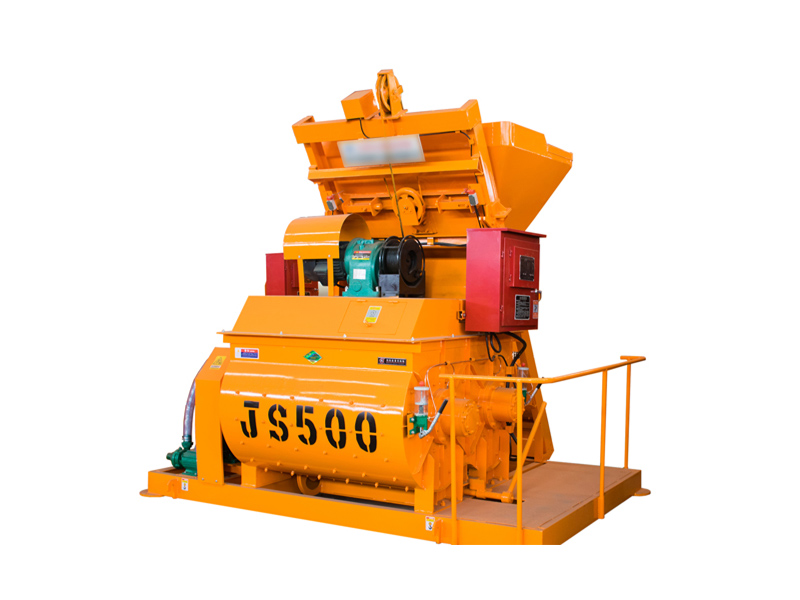

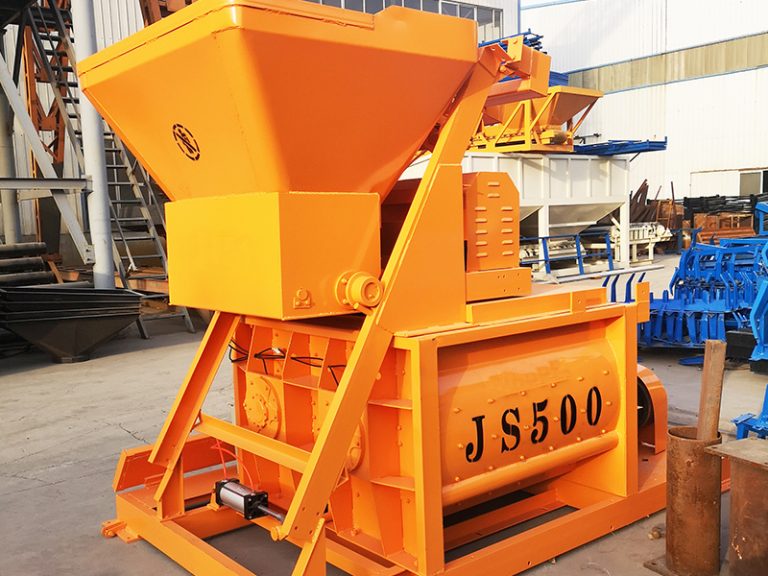

JS500 concrete mixer could work independently or in HZS25 concrete batching plant with PLD800 batcher, is widely used in engineering construction such as roads, bridges, dams, and ports.
If you are looking for an efficient and easy-to-use concrete mixer device, JS500 concrete mixer is undoubtedly your best option.
Parameter
| Model | JS500 | |
| Discharge capacity(L) | 500 | |
| Charge capacity(L) | 800 | |
| Theory productivity(m³/h) | ≤25 | |
| Max. aggregate diameter(mm) | ≤40/50 | |
| Working cycle time(s) | 72 | |
| Total weight(kg) | 3000 | |
| Outline dimension(mm) | Transporting | 3050×2530×2680 |
| Operating | 4461×3050×4180 | |
| Agitating vane | Rotational speed (r/min) | 26 |
| Count | 2×7 | |
| Agitator motor | Model | Y180M–4 |
| Power(KW) | 18.5 | |
| Hoist motor | Model | YEZ132S–4 |
| Power(KW) | 5.5 | |
| Pump motor | Model | BL12–12–1.1 |
| Power(KW) | 1.1 | |
Features
01.
Twin shaft concrete mixer produces high quality concrete at high speed with outstanding reliability.
02.
It combines an extra-rigid frame with work proven power train and innovative shaft seals that can last for the life of the mixer.
03.
The twin shaft mixer is ideal for large batches of wet precast, SCC and ready-mix concrete.
04.
Discharge system: Pneumatic & manual discharge mode, low noise.
05.
Liner and mixer blade adopts high rigidity wear resistant steel (long service life).
06.
The height of discharge: 3m-3.8m (optional)
