product Descriptionproduct Description

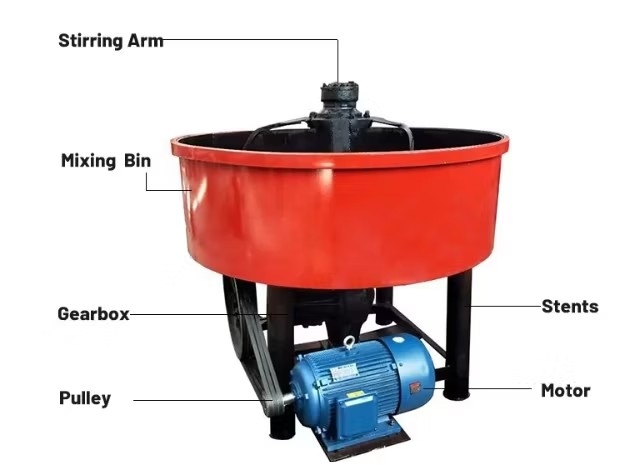

Concrete Pan Mixer is a mixer with forward rotation and reverse rotation, which can periodically carry out charging, stirring and discharging. And is a new type of concrete mixer, suitable for general highway, dam construction, constructionsites.
JW concrete pan mixers are not only widely used as industrial concrete mixers to mix plastic, dry-hard, fluidity concrete, light aggregate and various mortars, but also to mix animal feed and coating material, etc.JZM series mortar mixer can be driven by electric or diesel engine, to meet the requirements of different construction conditions, it also have lots of advantages such as compact structure , smooth working , stable transmission , convenient operation , good mixing quality, high production and high automatic procedures.
Copper motor
The mixer adopts a high-power copper core motor, which has strong power , stable rotation speed and low noise.

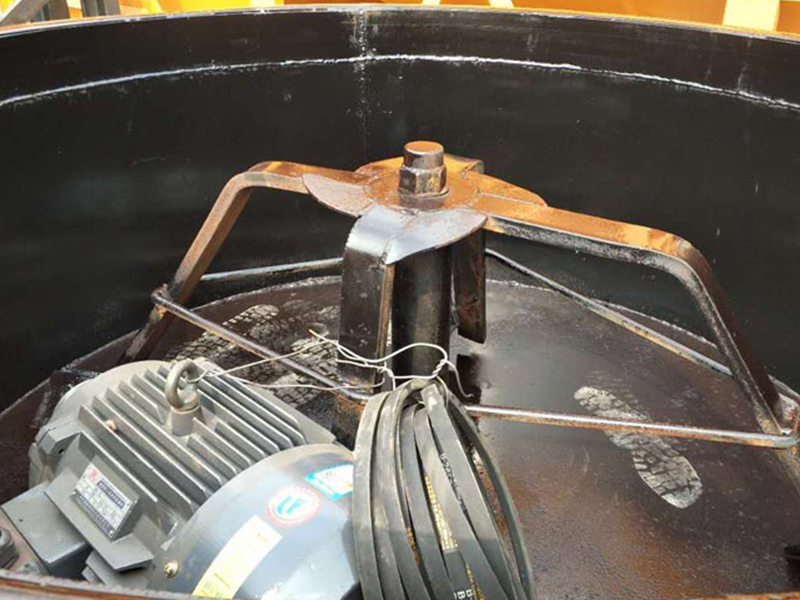

Reinforced thickened mix arm
The mixer adopts a thickened mixing arm, which makes concrete mixing more stable. It makes concrete mixing more adequate and the mixing arm durable.
Parameter
| Item | JW350 | JW500 | JW750 | JW1000 |
| Motor power | 4kW | 7.5kW | 11kW | 15KW |
| Discharge capacity | 350L | 500L | 750L | 1000L |
| Productivity | 9-12m³/h | 18-25m³/h | 25-37m³/h | 33-49m³/h |
| Overall dimension(L*W*H) | Φ900*1100mm | Φ1300*1300mm | Φ1500*1300mm | Φ1800*1300mm |
| Mixing arm quantity | 3 | 4 | 4 | 4 |
| Weight (kg) | 100kg | 480kg | 550kg | 680kg |
| Rotation speed | 21r/min | 40r/min | 40r/min | 45r/min |
Features
01.
Simple mixer structure: vertical shaft pan mixer, manual discharging door and electric engine
02.
Operation simplification, easy maintenance and saving workforce
03.
Mini mixer volume and small area covering, easy to change construction site
04.
Appropriate for mixing dry, high strength and light weight concrete or making cement precast plant
