product Description
Full automatic mobile concrete batching plant is a suitable solution for temporary needs with its features of rapid installation, advantage of starting production in a short time and minimum infrastructure necessity.

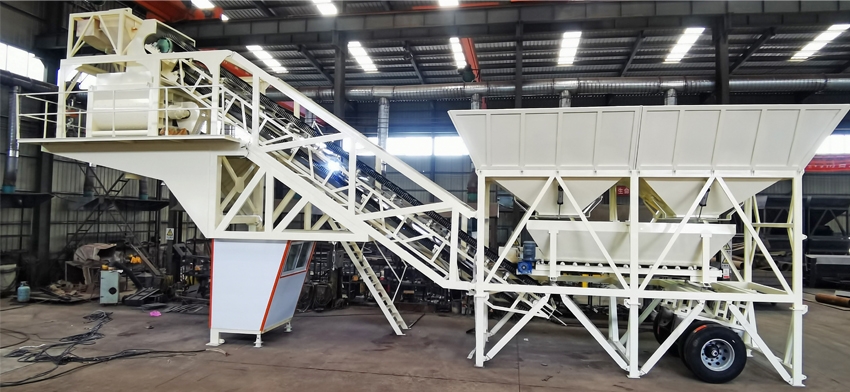

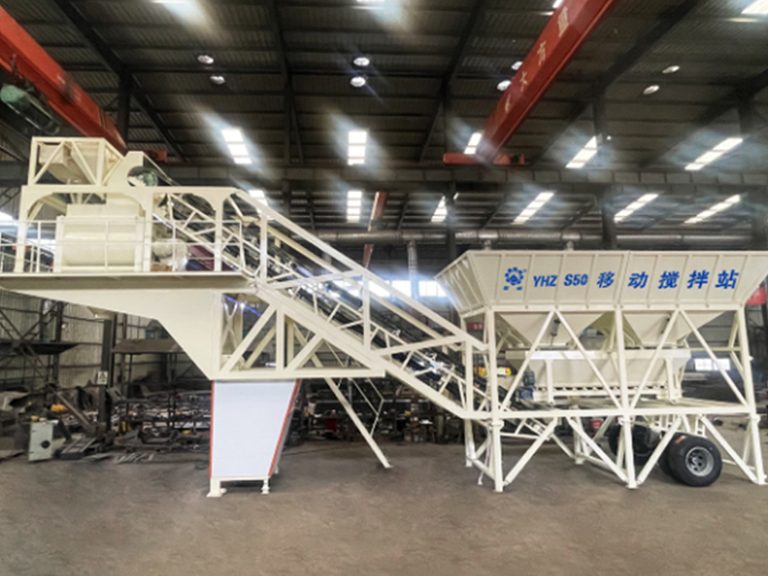

Mobile concrete batching plant consists of the same units as in a stationary concrete plant, is designed and installed on a chassis which is equipped with axle and tires. Thus it can be easily transported by towing by a truck trailer. Thanks to its pre-assembled structure, mobile concrete batching plants can be installed in a very short period of time (1-2days) on a simple flat concrete foundation and get easily ready for concrete production.
Mobile concrete equipment is designed to meet the needs of any construction project or concrete plant operation. Our machines are compact and manoeuvrable, making them perfect for tight spaces and difficult terrain. With our versatile fleet of weighers, trailers, and portable concrete plant equipment, we can help you improve the efficiency of any remote job, big or small.
Parameter
| Model | YHZS35 | YHZS50 | YHZS75 | |
| Global parameter | Max productivity | 35 | 50 | 75 |
| Discharging height(m) | 3.8 | 3.8 | 3.8 | |
| Working cycle time(s) | 72 | 60 | 60 | |
| Mixer | Model | JS750 | JS1000 | JS1500 |
| Batcher | Model | PLD1200 | PLD1600 | PLD1600 |
| Pneumatic system | Air compressor | 1.0–7 | 1.0–7 | 1.5–7 |
| Discharge pressure(MPa) | 0.8 | 0.8 | 0.8 | |
| Displacement (m³/min) | 1.67 | 1.67 | 1.67 | |
| Motor power | 5.5 | 7.5 | 11 | |
| Measurement system | Aggregate weighing accuracy | ±2% | ±2% | ±2% |
| Cement weighing accuracy | ±1% | ±1% | ±1% | |
| Water weighing accuracy | ±1% | ±1% | ±1% | |
| Additive weighing accuracy | ±1% | ±1% | ±1% | |
Features
01.
Quick and easy installation (1-2days)
02.
Cost effective transportation
03.
Quick and easy relocation and transfer to other sites
04.
Minimum foundation cost
05.
No requirement for a special installation permission
If you’re looking for a mobile concrete solution, contact Xinfeng Sales today. As the leading mobile concrete batching plant manufacturer, our sales and engineers are ready to work with you and recommend the right equipment for your needs.
