product Description

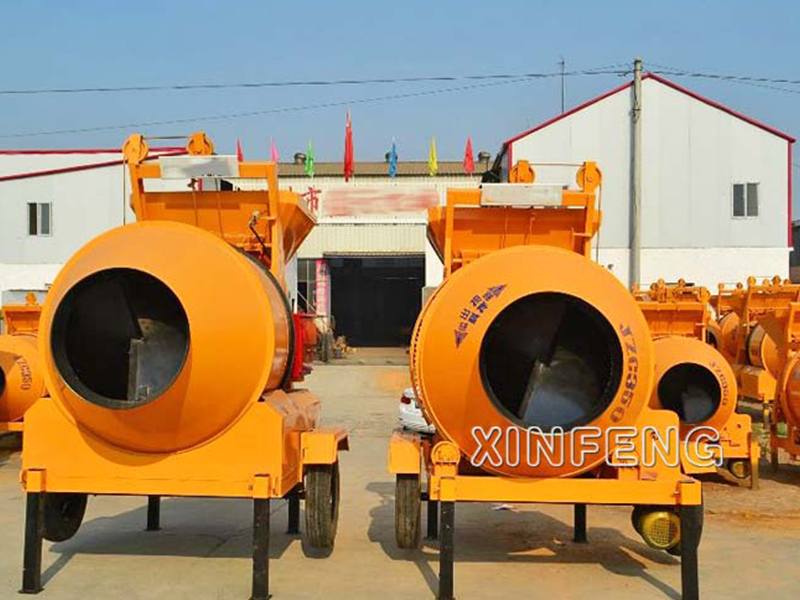

JZC series concrete mixer is a self-falling drum mixing and reversing discharging mixer. When working, the drum rotates forward for mixing and reverse for discharging. It can wet concrete, mix plastic and semi-dry hard concrete. It is suitable for small constructions such as road, bridge, building and precast factory.
Because it has wheels, it is very easy to transfer to other sites.

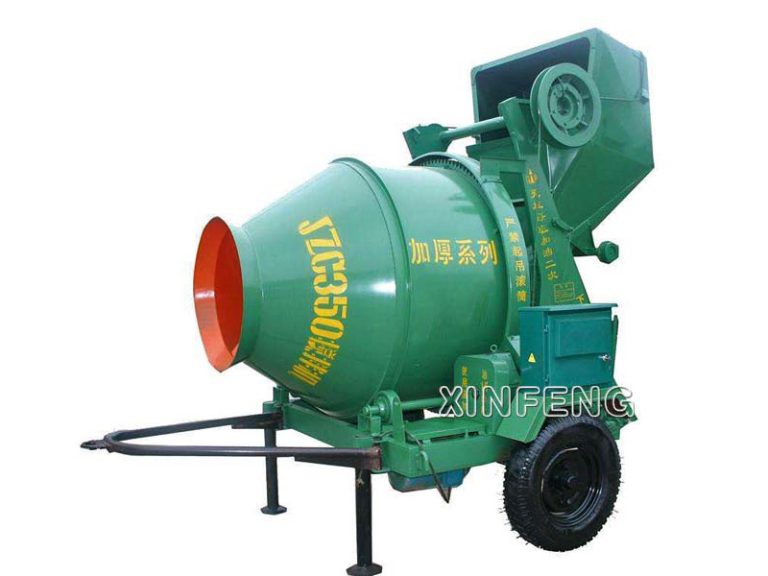

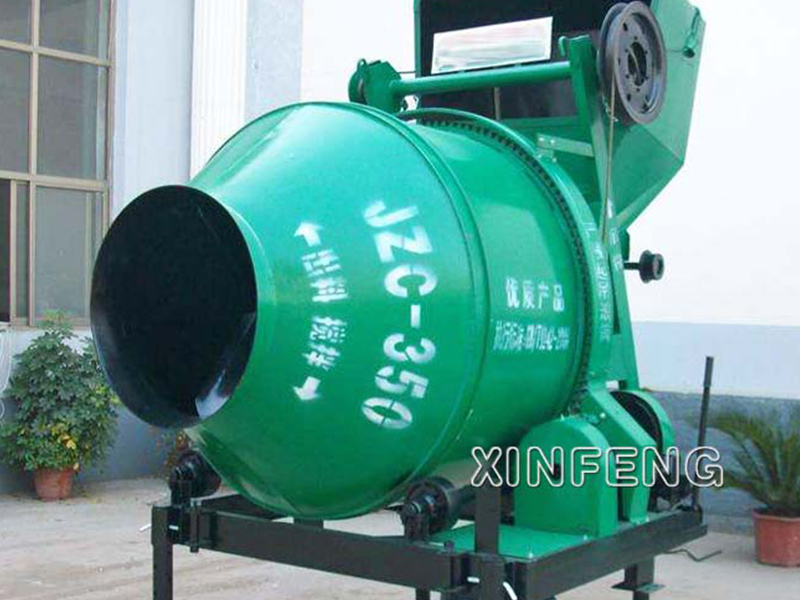

JZC series concrete roller mixer is mainly composed of mixing drum, mixing device, transmission system, feeding and discharging device and other parts. The working principle of cement mixer is mainly to fully mix materials such as cement, sand, stone, water and other additives through mechanical force to prepare uniform concrete.
JZC series concrete roller mixer can be driven by electric or diesel engine, to meet the requirements of different construction conditions, it also have lots of advantages such as compact structure , smooth working , stable transmission , convenient operation , good mixing quality, high production and high automatic procedures.
Parameter
| Model | JZC250 | JZC350 | JZC500 | JZC750 | |
| Nature of work | Discharge capacity | 250L | 350L | 500L | 750L |
| Feeding capacity | 320L | 560L | 800L | 1200L | |
| Productivity | 6-8 m³/h | 10-14 m³/h | 18-20m³/h | 20-22m³/h | |
| Mixing drum rotating speed | 17 | 14 r/min | 13 r/min | 12.26r/min | |
| Max. aggregate particle | 60mm | 60mm | 60mm | 80mm | |
| Precision of water supply | ≤2% | ≤2% | ≤2% | ≤2% | |
| Motor | Agitator motor | 4KW | 5.5KW | 2×5.5KW | 2×7.5KW |
| Lifting motor | 4KW | 4.5KW | 5.5KW | 7.5KW | |
| Pump motor | 0.55 | 0.55KW | 0.75KW | 1.1KW | |
| Tire specifications | 6.50-16 | 6.50-16 | 7.00-16 | 750-16 | |
| Maximum towing speed | 20km/h | 20km/h | 20km/h | 20km/h | |
| Outline dimension (L*W*H) | 2260×1900×2550mm | 3800*2050*2690mm | 5200*2050*3200mm | 5650*2065*3535mm | |
