product Description

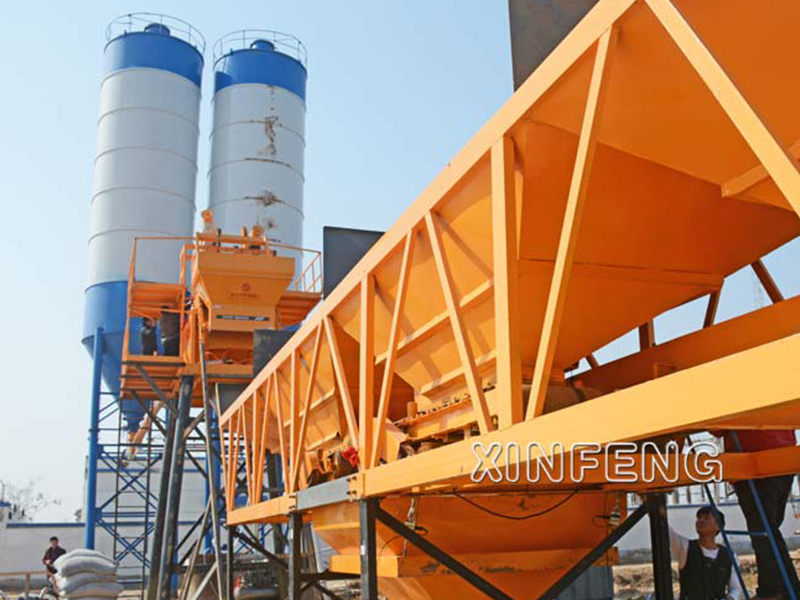

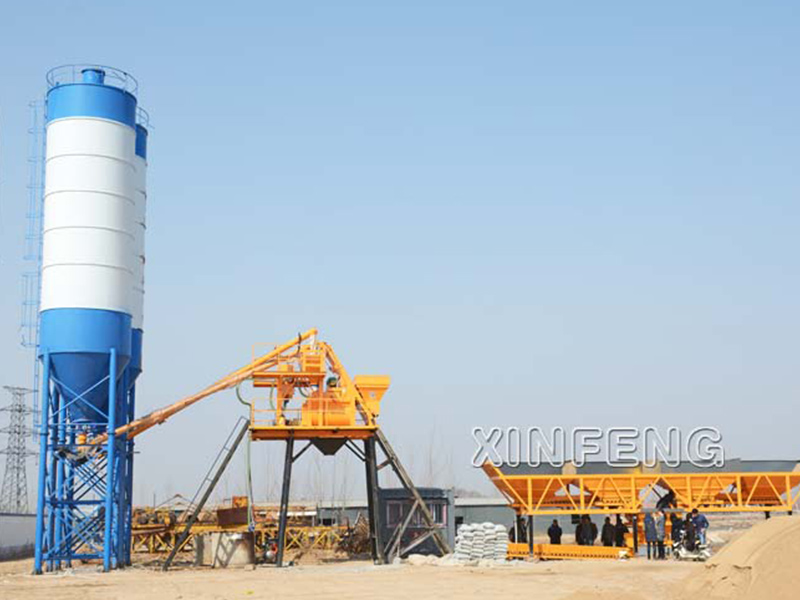

HZS50 Concrete Batching Plant is equipped with JS1000 twin-shaft compulsory mixer and PLD1600 aggregate batcher. It transports aggregates with skip hoists(bucket), which saves the footprint. The aggregate batcher can be equipped with 2-5 aggregate bins according to the production requirements. In addition, the fully automatic control system automates the production process, meeting the concrete production requirements of different grades and formulations.
It applies in medium-sized or temporary projects, prefabricated parts factories, small commercial concrete plant and so on.
HZS50 Concrete Batching Plant has the advantages of performances such as work stable, compact structure, small footprint, easy transfer, ect.
Parameter
| Model | HZS25 | HZS35 | HZS50 | HZS75 | |
| Global parameter | Max productivity (m³/h) | 25 | 35 | 50 | 75 |
| Discharging height(m) | 1.5–3.8 | 1.6–3.8 | 3.8 | 3.8 | |
| Working cycle time(s) | 72 | 72 | 72 | 72 | |
| Outline dimension(mm) | 11693×13060×17245 | 12922×13000×17245 | 15689×12500×18704 | 17608×12500×18704 | |
| Total Power(kw) | 57.25 | 75 | 88 | 150 | |
| Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
| Batcher | Model | PLD800 | PLD1200 | PLD1600 | PLD2400 |
| Aggregates feeding Mode | Skip hoist | Skip hoist | Skip hoist | Skip hoist | |
| Pneumatic system | Air compressor | 1.0–7 | 1.0–7 | 1.5–7 | 1.8–7 |
| Discharge pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Displacement (m³/min) | 1.67 | 1.67 | 1.67 | 1.67 | |
| Motor power | 5.5 | 5.5 | 7.5 | 11 | |
| Measurement system | Aggregate weighing accuracy | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Water weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Additive weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Cement silo Advice | 1x50t | 1x100t | 1x100t | 2x100t | |
| Loading Advice(1silo included) | 1*40HQ container | 1*40HQ container | 2*40HQ containers | 2*40HQ containers | |

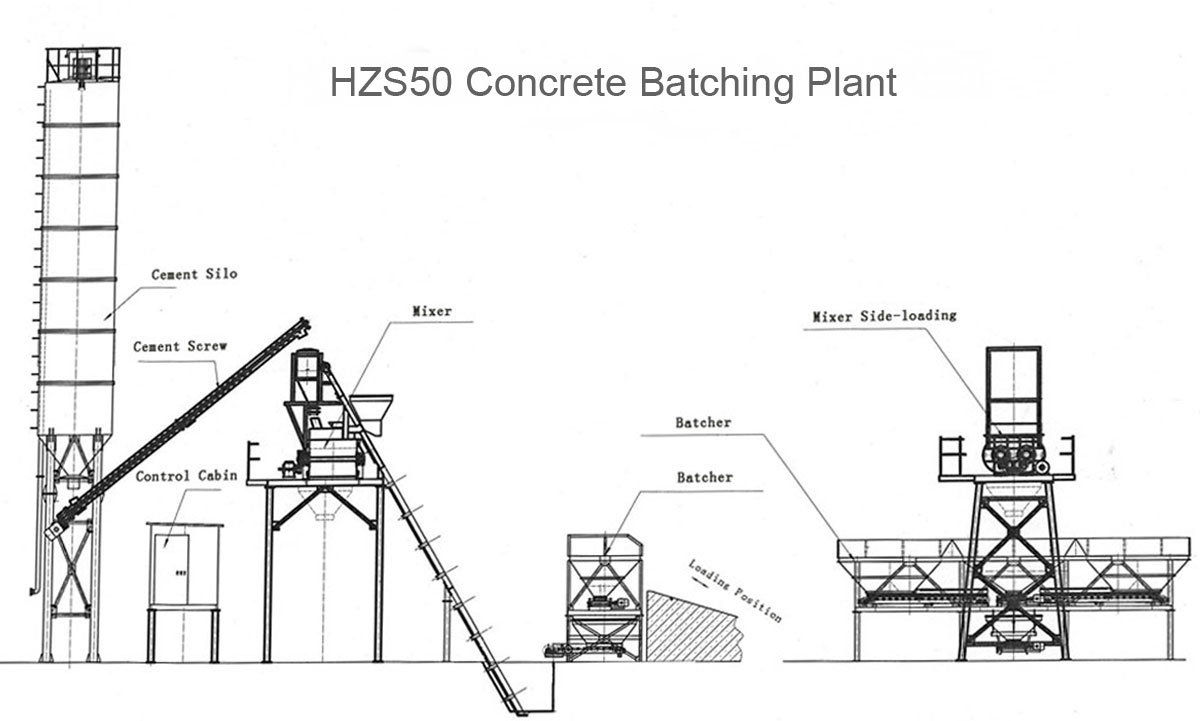

Main Components of HZS50 Concrete Batching Plant
01. Mixing System-JS1000 mixer+
01. Mixing System-JS1000 mixer
1. Patented multi-end sealing technology to avoid leakage and protect shaft ends
2. Adopts wear-resistance blade and liner plates, lifetime is over 60,000 times
02. Weighing System+
02. Weighing System
1. Cement&water&flyash&additive are measured independently ,ensuring fast and high accuracy weighing.
03. Aggregates Batching System-PLD1600 batcher +
03. Aggregates Batching System-PLD1600 batcher
1. Sand storage bin is with large vibrator ,guarantee smooth and fast discharge
2. Accumulative weighing system is adopted,accuracy error no more than 2%
04. Aggregate Conveying System+
04. Aggregate Conveying System
1. Adopt a bucket feeding method ,flexible feeding and simple operation
2. Assemble ladder,sidewalk and handrail, easy for maintenance
3. Solid hopper pulley to ensure the durable performance
05. Control System+
05. Control System
1. All wires&cables are coded with letters, easy to track and maintenance
2. Intelligent management system for task tracking, printing,etc.
3. PC+PLC control system to ensure simple and stable operation, HD display can show clearly the operation of each part.
06. Screw conveyor+
06. Screw conveyor
1. High revolving speed, large conveying capacity
2. Easy connection and reliable sealing
3. Angle and length can be customized
07. Cement silo+
07. Cement silo
1. Pieced type assembled bolted cement silo, easy transportation
2. High quality steel,good sealing, stable support and long service life.
