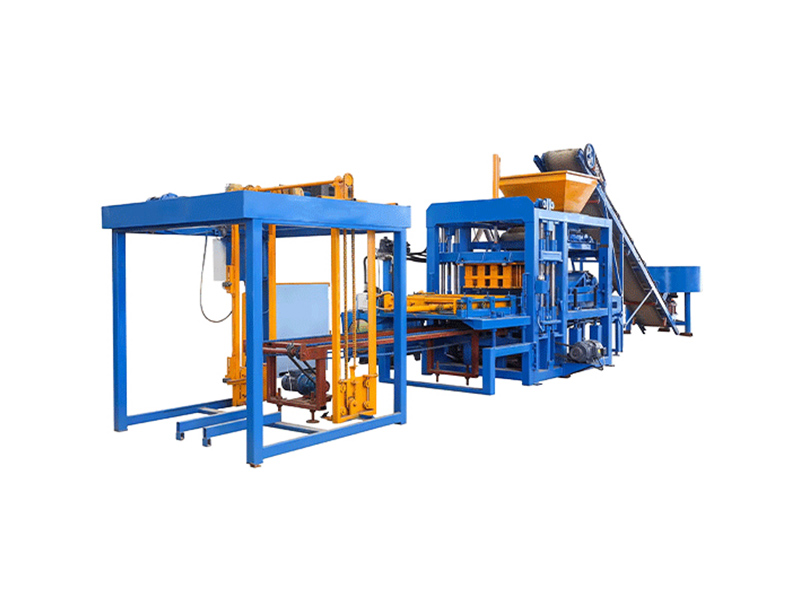

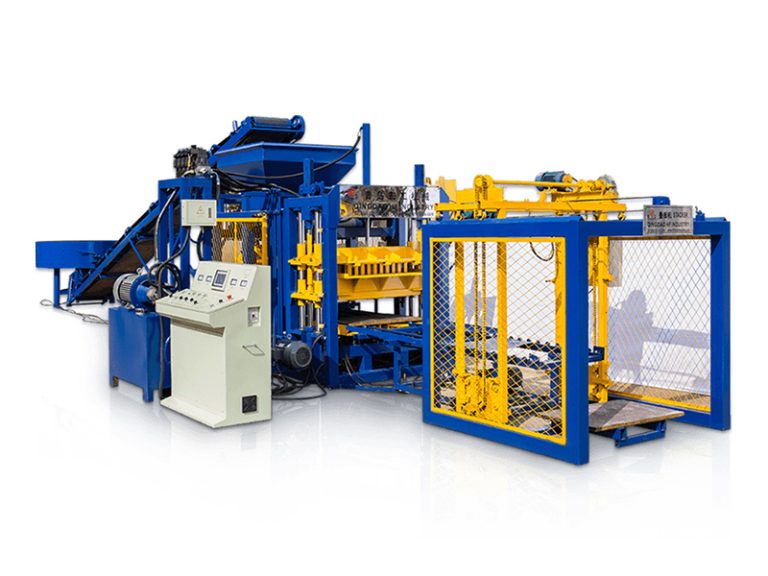

product Description
QT4-15 adopt more advanced material-feeding technology, materials from the hopper fall into the mould case rapidly and evenly,make the weight error less than ±5%，the intensity error less than ±15%.
We provide complete technical support, including site planning, installation guidance, technical training and after-sales service.
Parameter
| Dimension of host machine | 2700*1600*2500mm | Host machine power | 24kw |
| Weight of host machine | 4.5T | Vibration force | 30-50KN |
| Molding area | 830×400 | Mxer model | JD500 |
| Water consumption | 4-5Ton/day | Pallet size | 880x580x22mm |
| workshop area | 250-300m² | Voltage | adopt to local voltage |
| Name | Size(LxWxH) | Block Making Period | Pcs/Mould | Pcs/Hour |
| Hollow Brick | 400x200x200mm | 15-20s | 4 | 720-960 |
| Multi-Hole Brick | 240x115x90mm | 15-20s | 12 | 2160-2880 |
| Solid Brick | 240x115x53mm | 15-20s | 26 | 4680-6240 |
| Paver | 200x100x60mm | 20s | 16 | 2880 |
| I shape Paver | 200x163x60mm | 20s | 12 | 2160 |
Features
01.
High Efficiency and energy saving
02.
Super wear-resistant gear, strong vibration
03.
Easy operating and convenient maintenance
04.
Big capacity ,automatic PLC operation
- Automatic running with PLC controller ,less labor and less hard work, it also have manual operation mode.
- Strong and durable construction,10-20mm steel, very strong and durable,lifetime more than 10year
- Materail hopper with weighing belt ,which can control more accurately
- Material feeder more gears which can feed materials to mould evenly and avoid big stone get into mould from hurting mould.
- Hydraulic motor and vibrator long with strong vibrating table, which can give you a super strong press and forming,you will get a very high quality blocks
- Automatic color feeder, allow you produce color pavers, interlocking block and also smooth kerbstone.

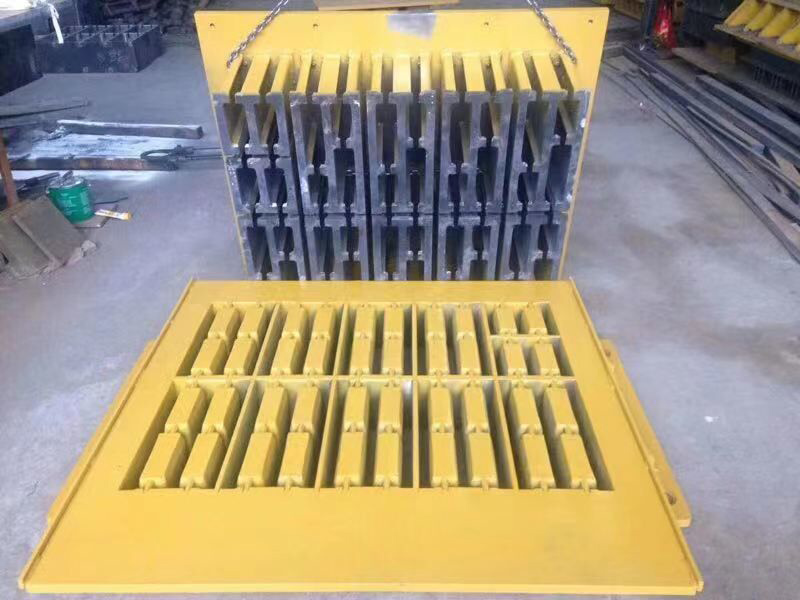

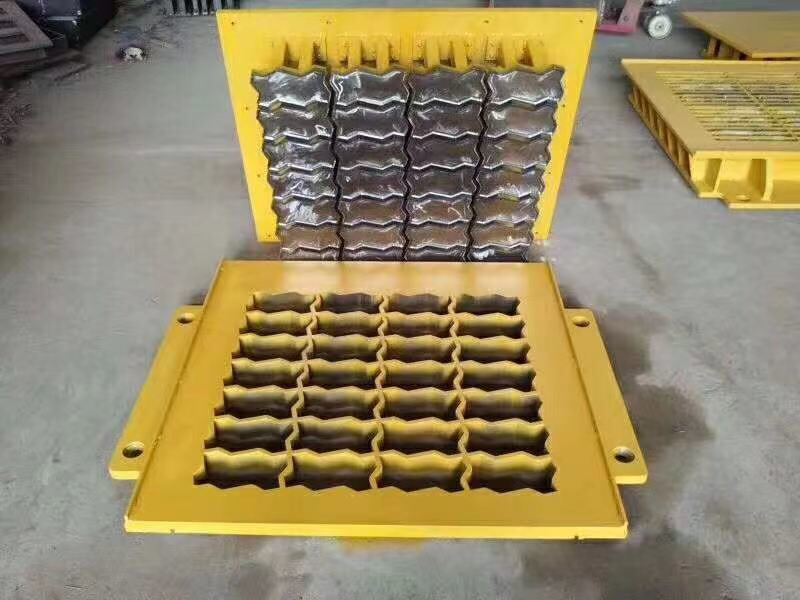

- Strong and thick steel mould ,durable, and longlife and it can produce hollow brick,solid brick,pavers by changing mould and we can customerize mould at your request.
- Strong and thick hydraulic cylinder, lift mould fast no leakage and durable

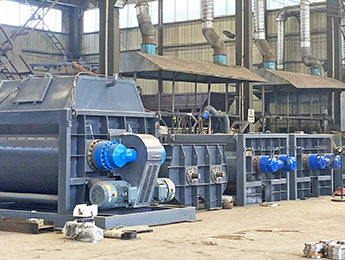

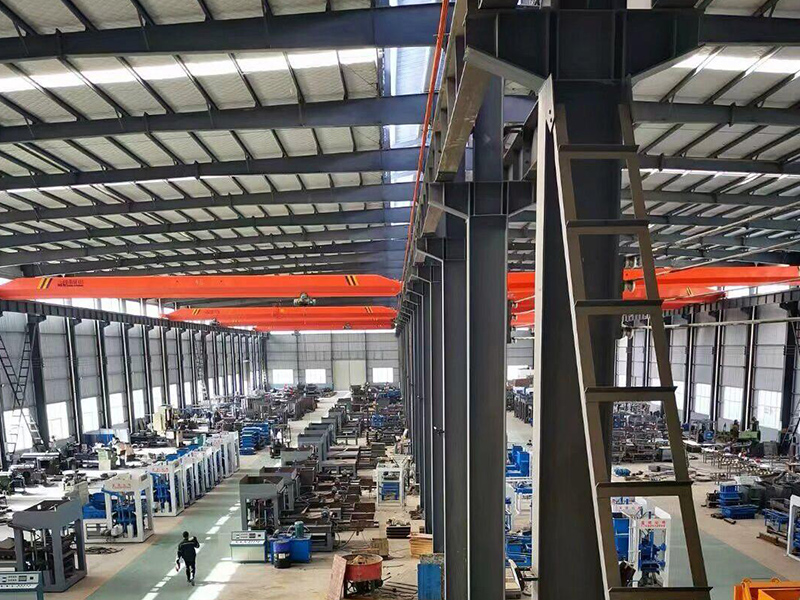

Factory Strength
