product Description
Trailer mounted concrete pump requires steel or flexible concrete placing hoses to be manually attached to the outlet of the machine and feed the concrete to the place of application.Trailer mounted Concrete pump is used to deliver concrete to job site above ground or underground, such as high-rise building or tunnel construction. Our concrete pump can deliver concrete to about 200 meters in height and 500 meter in length.
All our concrete pumps are equipped with wheels and remote control, it is very easy to operate and move to other job sites.

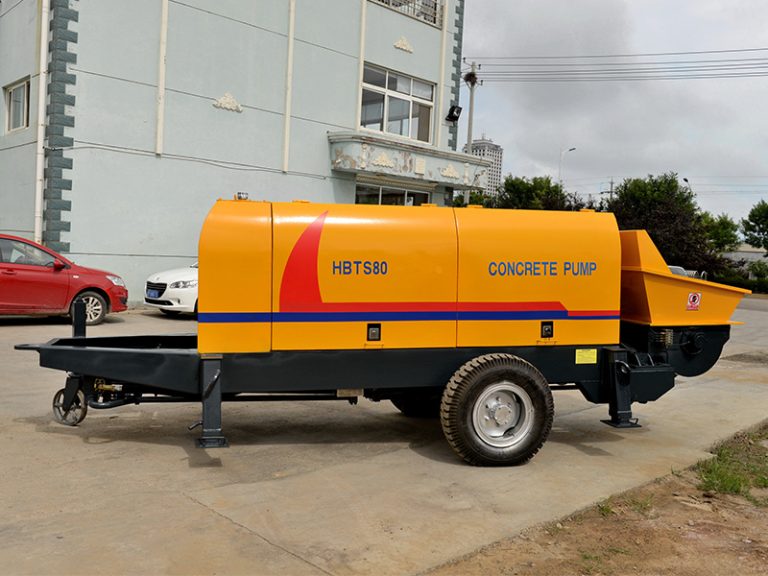

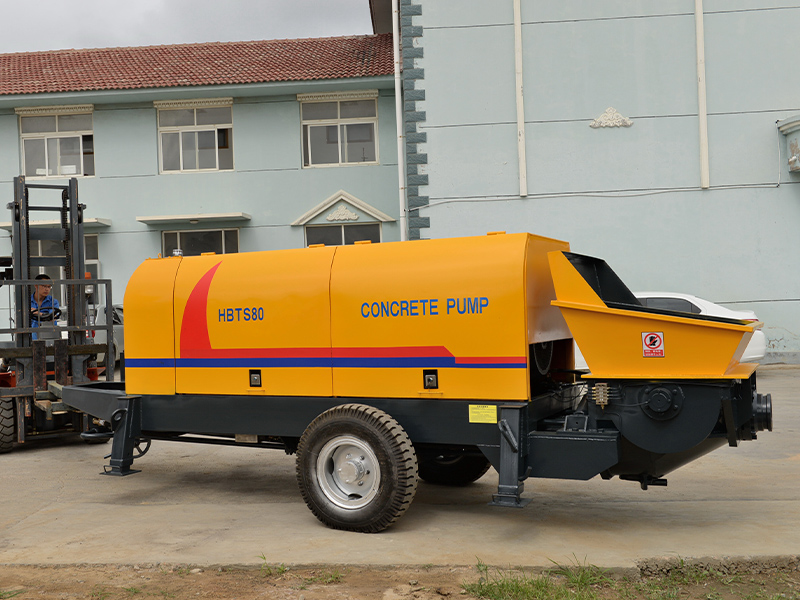

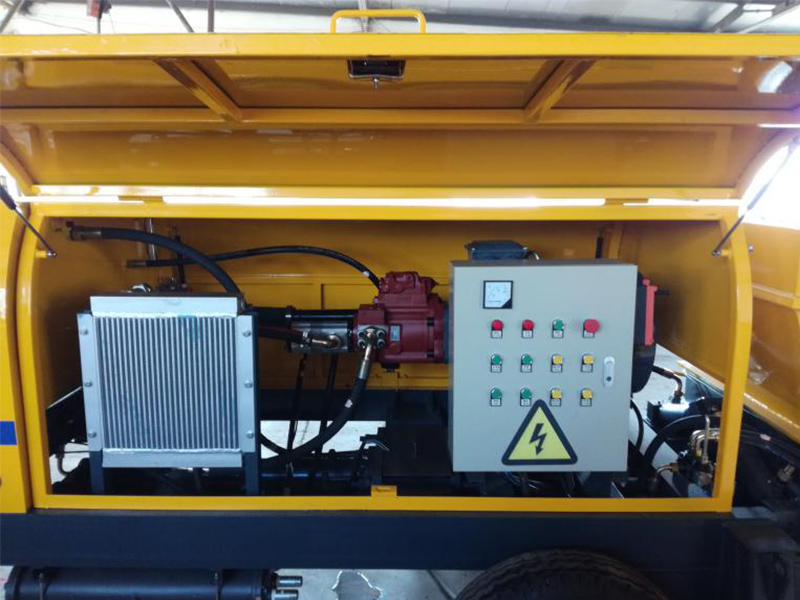

Electric Trailer Concrete Pump Parameter
| Model | HBTS30 | HBTS40 | HBTS60 | HBTS80 |
| Mail Oil Pump Discharge(ml/Min) | 71 | 112 | 112×2 | 112×2 |
| Theory Capacity(m³) | 30 | 40 | 60 | 80 |
| Motor Power | 37 | 45 | 90 | 90 |
| Main Oil Tank Diameter/Stoke (mm) | Φ80/845 | Φ100/1300 | Φ125/1650 | Φ125/1650 |
| Concrete Tank Diameter/Stoke(mm) | Φ140/845 | Φ180/1300 | Φ200/1650 | Φ200/1650 |
| Hydraulic Hose | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy |
| Seal | Parker USA | Parker USA | Parker USA | Parker USA |
| Electric Control System | Schneider, France | Schneider, France | Schneider, France | Schneider, France |
| PLC Brand | Omron, Japan | Omron, Japan | Omron, Japan | Omron, Japan |
| Remote Control | Wireless Remote Control | |||
| High/low Voltage Conversion | No | Yes | Yes | Yes |
| Valve Group | Huade, China | Huade, China | Huade, China | Huade, China |
| Pumping Distance Levl/Vertical (m) | 400/120 | 500/120 | 600/180 | 1000/180 |
| Lubrication System | Automatic Hydraulic | Automatic Hydraulic | Automatic Hydraulic | Automatic Hydraulic |
| Size(mm) | 3400X1420×1600 | 4800×1750×1700 | 4820×1750×1770 | 5900×2000×2000 |
| Weight (kg) | 2200 | 3700 | 3900 | 6000 |
| Loading Container Advice | 1*20GP container | |||

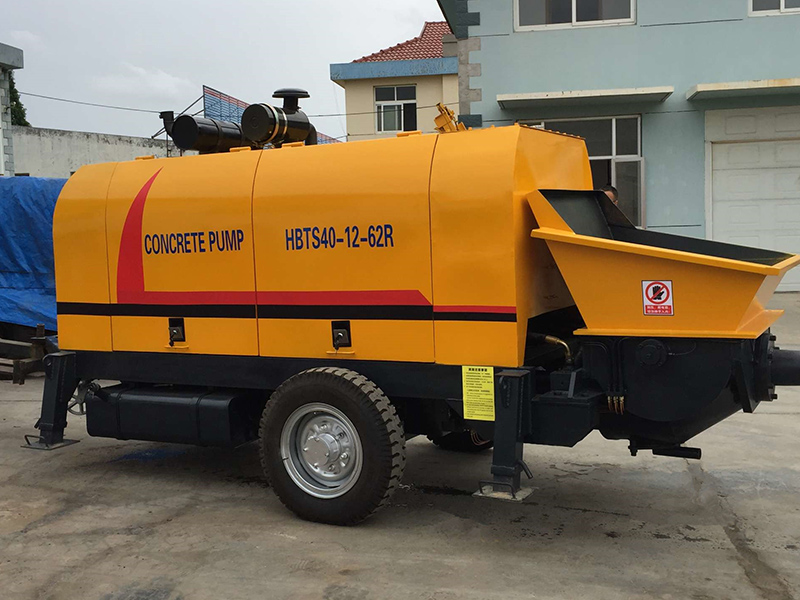

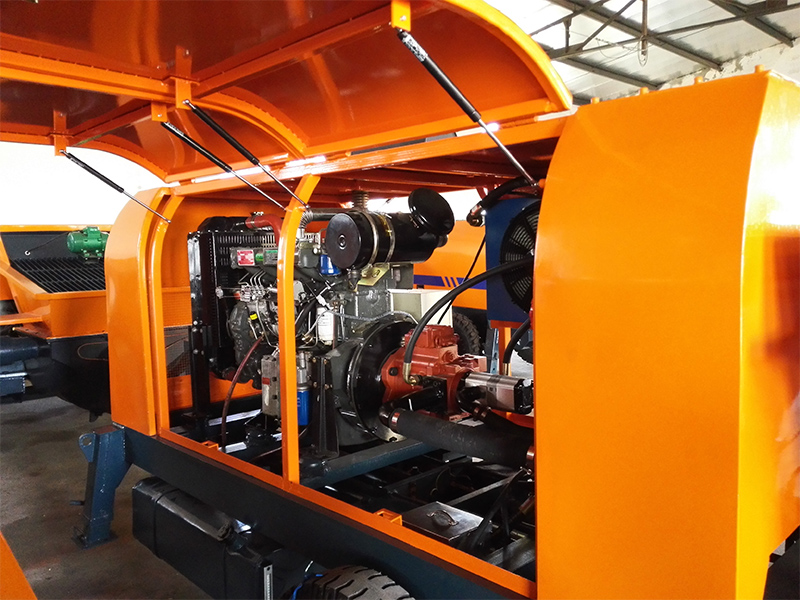

Diesel Trailer Concrete Pump Parameter
| Model | HBTS30R | HBTS40R | HBTS60R | HBTS80R |
| Mail Oil Pump Discharge(ml/Min) | 71 | 112 | 112×2 | 112×2 |
| Theory Capacity(m³) | 30 | 40 | 60 | 80 |

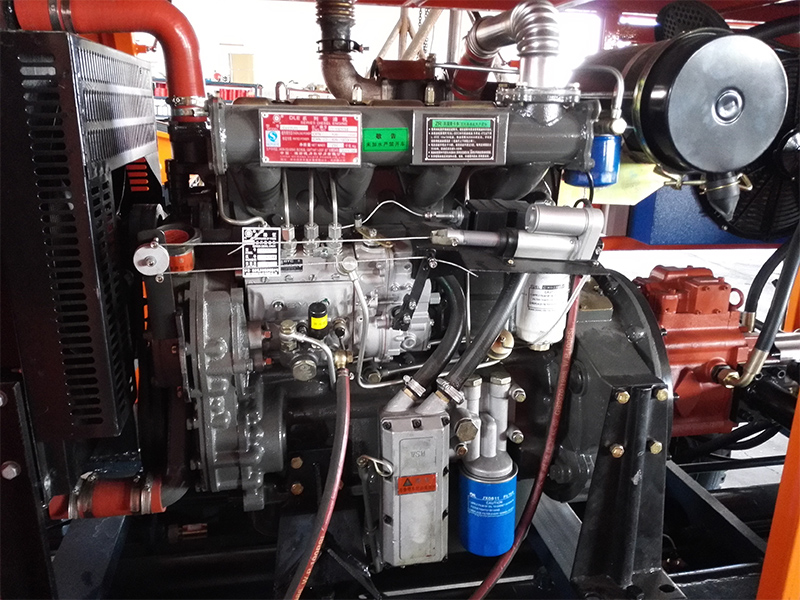

| Diesel engine | Various Brand Diesel engine optional (weifang/weichai/yuxing/Cummins) | |||
| Main Oil Tank Diameter/Stoke (mm) | Φ80/845 | Φ100/1300 | Φ125/1650 | Φ125/1650 |
| Concrete Tank Diameter/Stoke(mm) | Φ140/845 | Φ180/1300 | Φ200/1650 | Φ200/1650 |
| Hydraulic Hose | Manuli, Italy | Manuli, Italy | Manuli, Italy | Manuli, Italy |
| Seal | Parker USA | Parker USA | Parker USA | Parker USA |
| Electric Control System | Schneider, France | Schneider, France | Schneider, France | Schneider, France |
| PLC Brand | Omron, Japan | Omron, Japan | Omron, Japan | Omron, Japan |
| Remote Control | Wireless Remote Control | |||
| High/low Voltage Conversion | No | Yes | Yes | Yes |
| Valve Group | Huade, China | Huade, China | Huade, China | Huade, China |
| Pumping Distance Levl/Vertical (m) | 400/120 | 500/120 | 600/180 | 1000/180 |
| Lubrication System | Automatic Hydraulic | Automatic Hydraulic | Automatic Hydraulic | Automatic Hydraulic |
| Size(mm) | 3400X1420×1600 | 4800×1750×1700 | 4820×1750×1770 | 5900×2000×2000 |
| Weight (kg) | 2200 | 3700 | 3900 | 6000 |
| Loading Container Advice | 1*20GP container | |||
Advantages
- Automatic lubrication system with long service life.
- Adopt main hydraulic oil pump and double-circuit open hydraulic system.
- The S valve with good sealing performance is equipped with a floating wear-resistant ring.
- High pumping pressure, suitable for vertical and horizontal distance projects.
- High-quality wear-resistant alloy parts, long service life.
- Air cooling system, does not rely on external water supply.
- With re-pumping function, the construction is smooth and the accessibility is better.
- The S valve is used to switch the direction and is used for conveying cement mortar and fine stone concrete.
- Equipped with wireless remote control.
- The PLC control system ensures the best electrical control performance.
Electric Trailer Pump VS Diesel Trailer Pump
Electric trailer mounted concrete pump for sale are popular in cities with high environmental protection requirements and strict ranking requirements due to their low noise and clean energy characteristics. However, the use of electric trailer pumps requires a stable grid support, so it is not suitable for remote areas where electricity is lacking.
On the contrary, diesel trailer pumps are suitable for projects with power shortage and difficult conditions.
In summary, the specific choice of which type of concrete trailer pump needs to be decided according to your construction environment and pumping needs.
