product Description

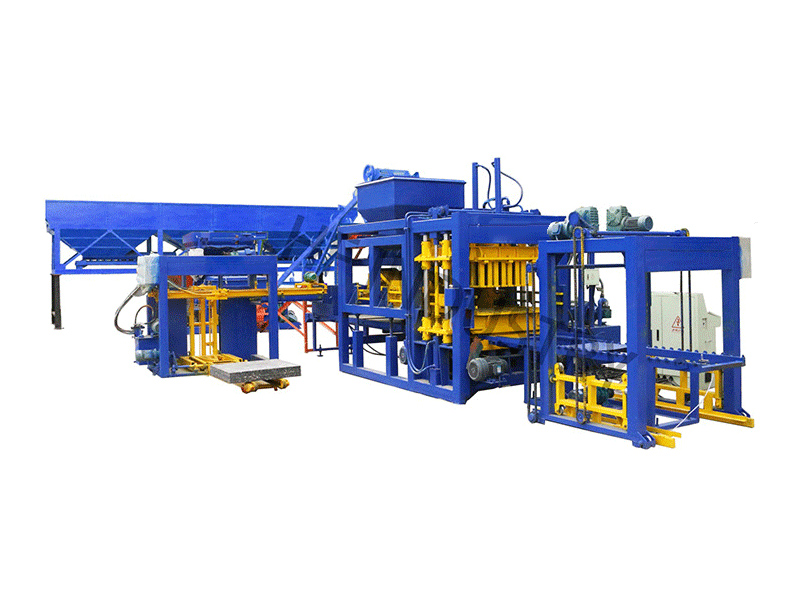

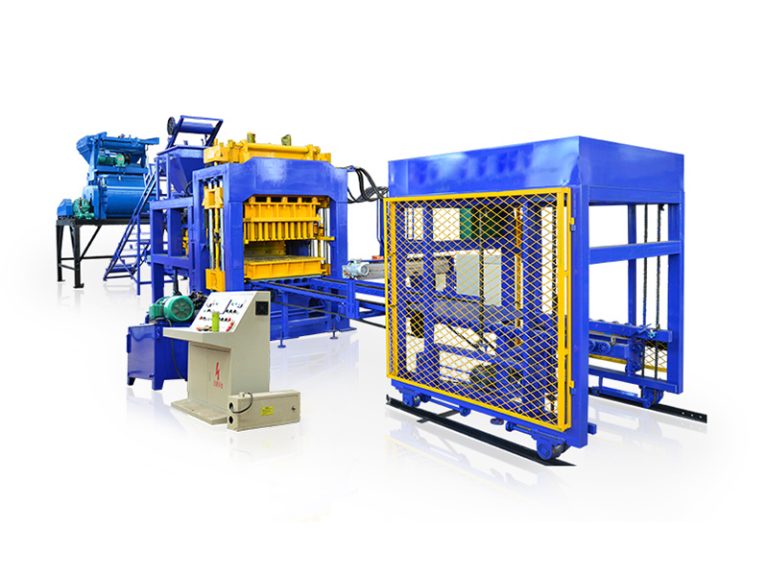

QT12-15 block making machine can save 16% energy and 35% more profit for you. With the block machines and auxiliary machines, all the excellent blocks and customized blockes can be produced. Hollow blocks, solid blocks, paving block,porous blocks, curbstones and colorful blocks can be manufactured by our QT12-15 block machine.
We cooperated with SIEMENS, SCHNEIDER and so on to make sure our block machine with high quality and keep our machine work more stable.
Parameter
| Overall Dimension | 9350x2520x2950mm |
| Rated pressure | 21MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 2800-4500 rolls/minute |
| Pallet Size | 1350x900mm |
| Motors Power | 70.5kw |
| Weight | 12500kg |
| Raw Materials | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Applied Fields | Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
| Block type | Image | Size (mm) L*W*H | Molding cycle | QTY (pcs)/Mould | Qty(pcs)/hour | Qty(pcs)/8hr |
| Hollow block |  | 400x200x200 | 15-20 | 12 | 2160-2880 | 17280-23040 |
| Hollow block |  | 400x150x200 | 15-20 | 16 | 2880-3840 | 23040-30720 |
| Solid block |  | 240x110x70 | 15-17 | 50 | 10588-12000 | 84704-96000 |
| Paver |  | 225×112.5×60 | 15-25 | 27 | 4860-3888 | 38880-31104 |
| Paver |  | 200x100x60 | 15-25 | 44 | 6336-10560 | 50688-84480 |
Features
- Multi-use, Any size of concrete blocks can be made.
- Full automatic intelligent control with SIEMENS system
- Integrated PLC control requires less labor: 3-5 workers can operate the production line
- Faster block molding speed: 12s to 15s for hollow blocks
- Four-axis synchronous vibration system configuration as well as special self-lubrication design can reduce the number of times of shutdown repairing
- The block production line can be equipped with cuber and robot system
- An ideal model for large scale concrete blocks plant
Applications

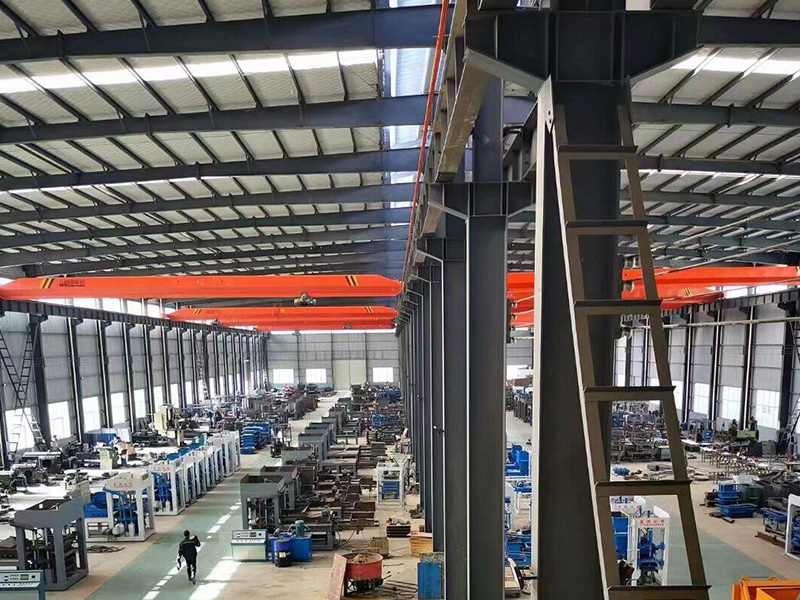

Factory Strength
