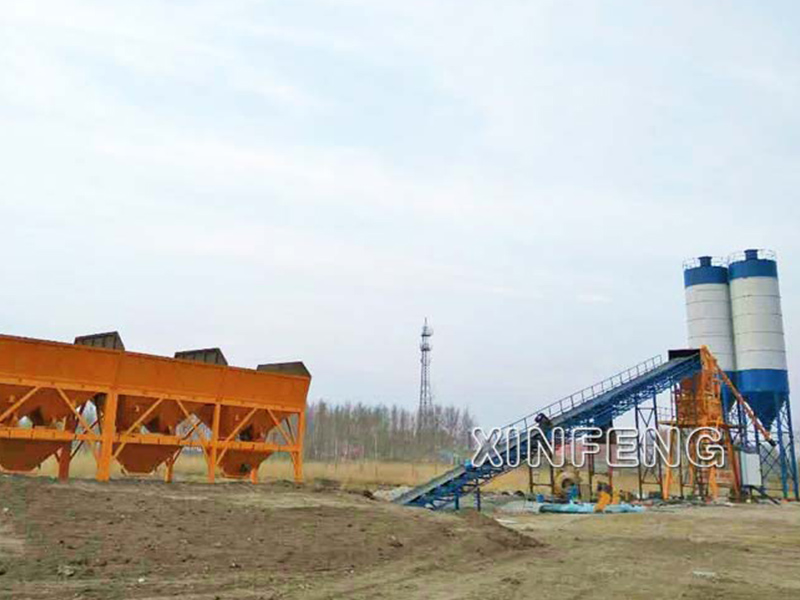

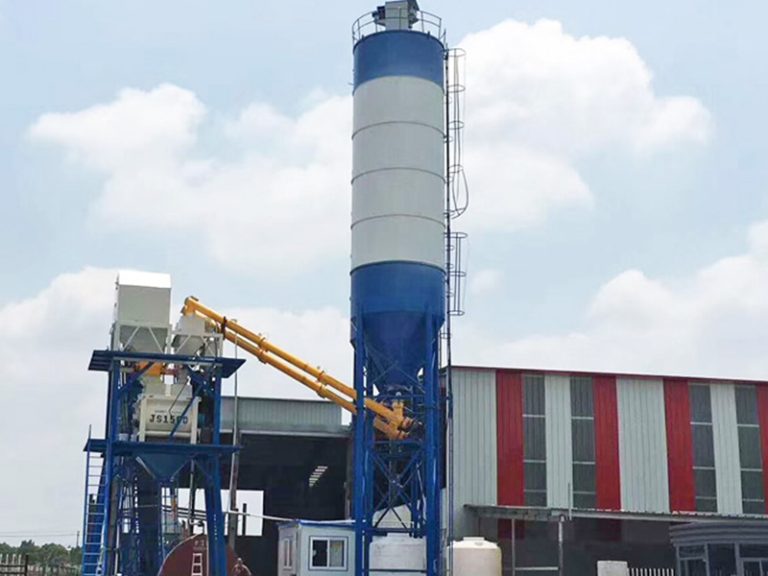

HZS90 Concrete Batching Plant

product Description

HZS90 concrete batching plant is an excellent choice for medium-sized projects. With a production capacity of 90 m³/h, this model provides time and cost savings in your projects with its high mixing performance and fast production cycle.

It is very popular in various projects of buildings, roads, bridges, highways, railways, docks, airport, water projects, hydropower station, etc.

Parameter

Model		HZS60	HZS90	HZS120	HZS180
Global parameter	Max productivity (m³/h)	60	90	120	180
	Discharging height(m)	4.2	4.2	4.2-4.5	4.2-4.5
	Working cycle time(s)	60	60	60	60
	Outline dimension(mm)	58445×12376×18704	58555×12376×18704	60210×13700×18704	62900×15000×19500
	Total Power(kw)	115	150	210	260
Mixer	Model	JS1000	JS1500	JS2000	JS3000
Batcher	Model	PLD1600	PLD2400	PLD3200	PLD4800
Aggregates feeding Mode		Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Pneumatic system	Air compressor	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement (m³/min)	1.67	1.67	1.67	1.67
	Motor power	7.5	11	11×2	11×2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
Cement silos Advice		2x100t	3x100t	4x100t	4x200t
Loading Advice		3*40HQ containers	4*40HQ containers	6*40HQ containers	8*40HQ containers

Features

01.

Independent and accurate weighing system.

02.

The modular structure is convenient for installing and removing.

03.

High production performance output with high-quality concrete.

04.

Stable Operation &Anti-Interference.

05.

Enviromental Protection (mixer and silo dust removal).

06.

Quick returns.

07.

Long-term online and offline after-sales service (problem solution& parts supply ).

Accessories

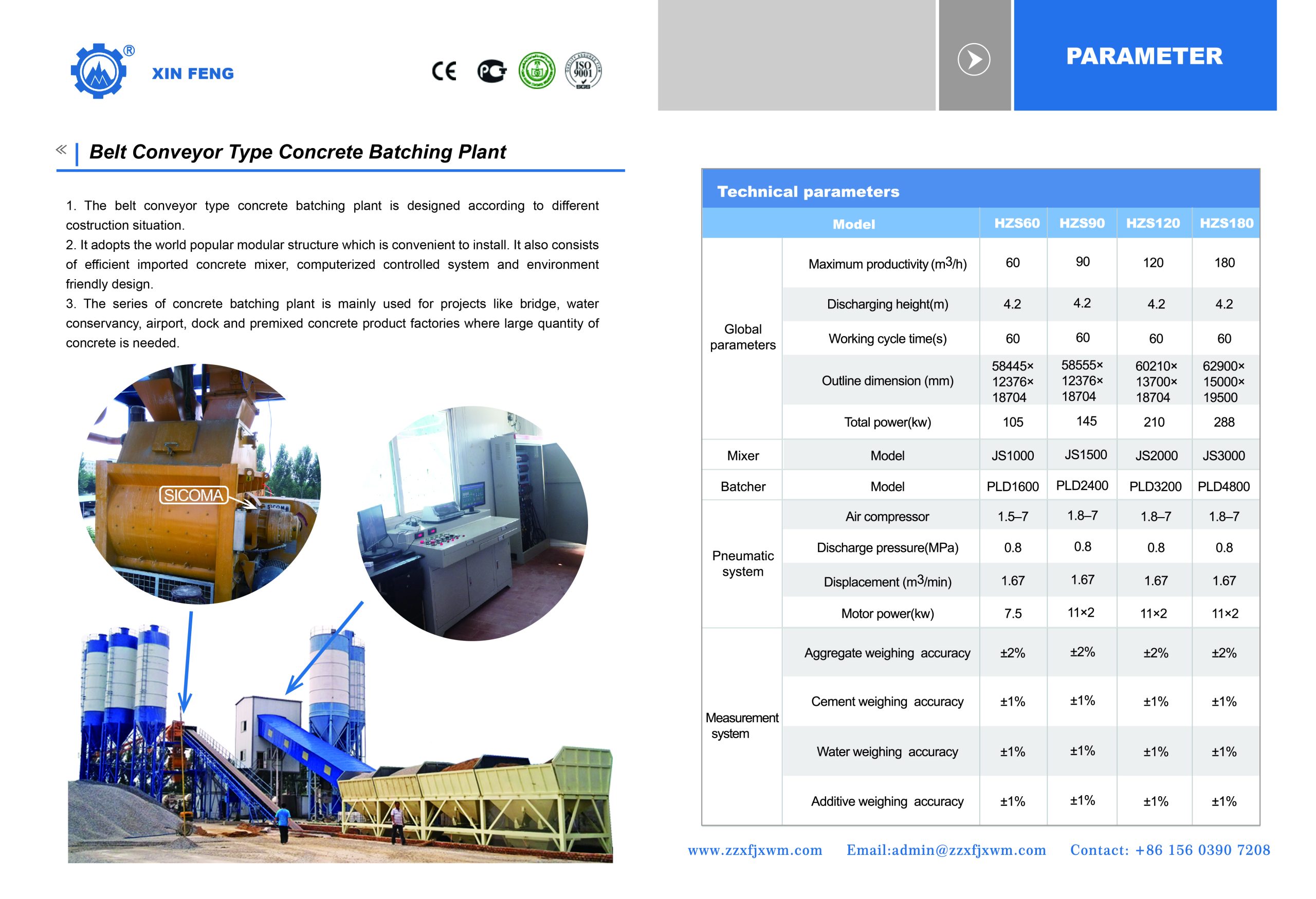

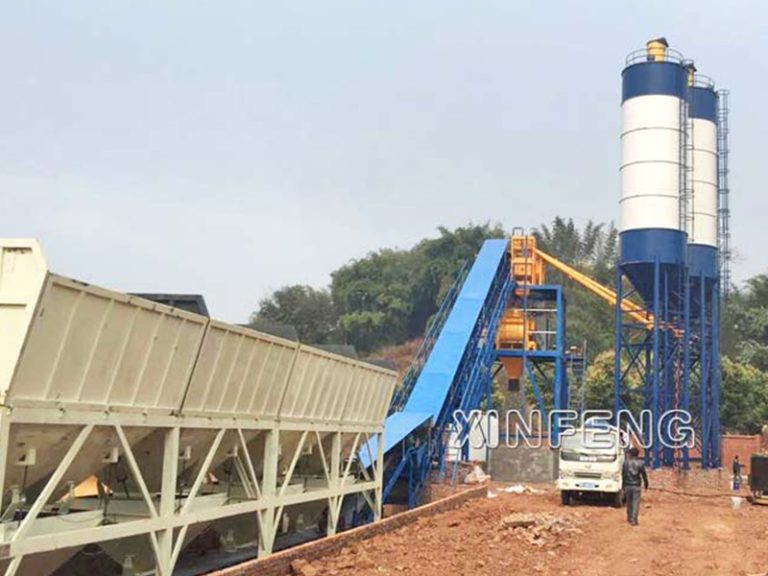

Belt conveyor type concrete batching plant usually consists of aggregates storage and dosing system, cement storage and delivery system, aggregates feeding system, mixing system and control system.

Aggregates (sand and stone) storage and dosing system uses PLD serials concrete batching machine. The aggregates storage usually uses 4 bins, and the dosing will use one long belt cumulative weighing hopper with load cells.

01. Mixing system+

01. Mixing system

It usually adopts JS1500 twin shaft concrete mixer which is the most popular mixer to mix concrete. Vertical shaft planetary type concrete mixer can also be equipped to mix the top-grade concrete quality. Aggregates waiting hopper for second batch is equipped above the mixer to reduce delivery time.

–

02. Batching system+

02. Batching system

PLD2400, Independant Accurate weighing with sensors, can batch 4 kinds of aggregates automatically according to the mixture ratio set by users, all-steel structure, discharge height can be customerized.

–

03. Measurement/weighing system+

03. Measurement/weighing system

Aggregates, cement & water & additives required for each batch of concrete.

–

04. Feeding system+

04. Feeding system

The belt-type mixing plant lifts the aggregates to the standby hopper through the belt. it can continuously feed materials and has a large conveying distance.

–

05. Scew conveyor+

05. Scew conveyor

Conveying cement and flyash and other materials economically and effectively unclogging.

–

06. Cement silo +

06. Cement silo

The silo is composed of the cover, wall sections, cones and supporting legs. It is also equipped with dust collector, butterfly valve, arch broken and level indicators etc. Pieced type when transport, and easy to assemble (a 100T capacity silo can be assembled by 3 men in 3 days)

–

07. Control system+

07. Control system

PC+PLC control system ensures high reliability Simple/Standard for optional as your requirements. It includes two parts: the electric control panel and pneumatic driving line with air compressor. The control way usually adopts computer PLC full auto control which provides different sets of concrete formulas and records for your easy operation.

–
