product Description

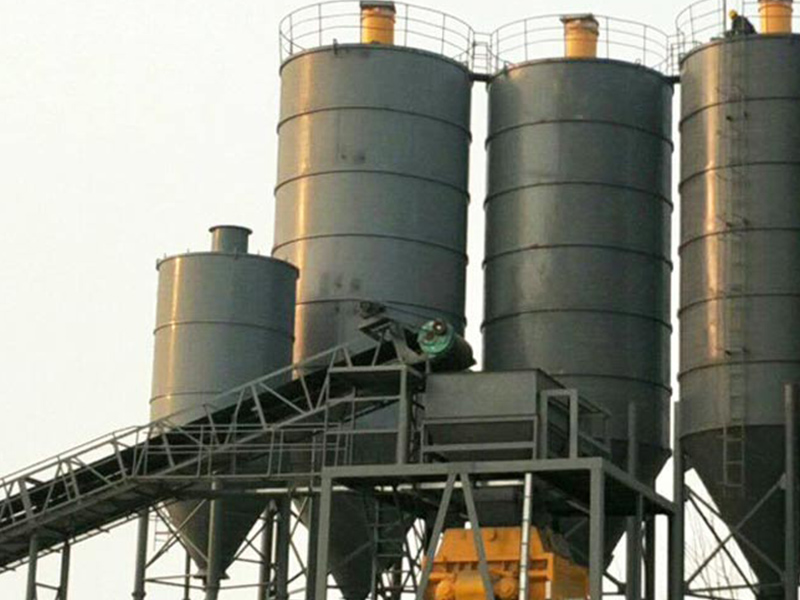

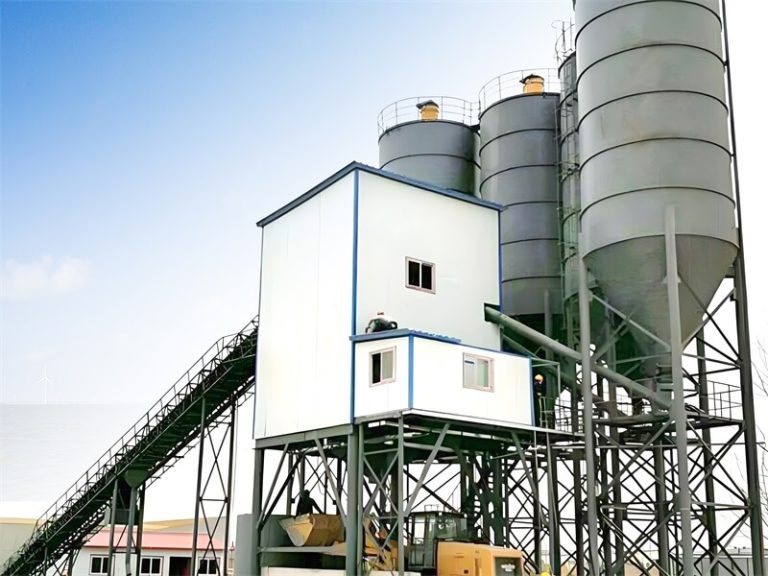

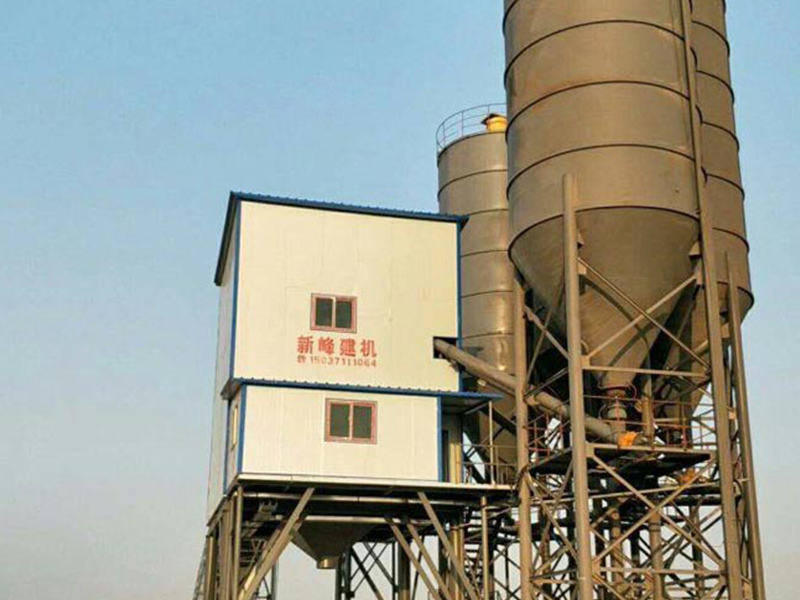

HZS120 Concrete Batching Plant is equipped with MAO3000/2000 twin-shaft mixer (Famous SICOMA Brand) and PLD3200 aggregate batcher. It can meet the high standard of concrete production. The fully automatic control system can add different concrete production formula and plan to achieve the needs of producing various grades of concrete.
The HZS120 concrete batching plant can be used as a commercial concrete plant to produce high quality concrete. It is a great choice for construction projects such as expressway, bridge, airport, railway and water conservancy projects.
Parameter
| Model | HZS60 | HZS90 | HZS120 | HZS180 | |
| Global parameter | Max productivity (m³/h) | 60 | 90 | 120 | 180 |
| Discharging height(m) | 4.2 | 4.2 | 4.2-4.5 | 4.2-4.5 | |
| Working cycle time(s) | 60 | 60 | 60 | 60 | |
| Outline dimension(mm) | 58445×12376×18704 | 58555×12376×18704 | 60210×13700×18704 | 62900×15000×19500 | |
| Total Power(kw) | 115 | 150 | 210 | 260 | |
| Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 |
| Batcher | Model | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Aggregates feeding Mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | |
| Pneumatic system | Air compressor | 1.5–7 | 1.8–7 | 1.8–7 | 1.8–7 |
| Discharge pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Displacement (m³/min) | 1.67 | 1.67 | 1.67 | 1.67 | |
| Motor power | 7.5 | 11 | 11×2 | 11×2 | |
| Measurement system | Aggregate weighing accuracy | ±2% | ±2% | ±2% | ±2% |
| Cement weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Water weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Additive weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
| Cement silos Advice | 2x100t | 3x100t | 4x100t | 4x200t | |
| Loading Advice | 3*40HQ containers | 4*40HQ containers | 6*40HQ containers | 8*40HQ containers | |
Features
01.
High efficiency, low fuel consumption, and environmental care.
02.
Modular function and design; easy installation and site transfer.
03.
Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
04.
Independent measuring of various kinds of materials , stable performance and accurate measurement.
05.
Advanced industrial computer + PLC control mode, full automatic control and manual control optional.
06.
It can also be designed according to the requirements and conditions (site, output, environmental care, structural appearance).
Prepare Reserved Cables for each motor are marked with letters, for easy connection
After-sales service will be online support or remote control support, or technician door-to-door service
Accessories
The HZS120 concrete batching plant is composed of mixing system, batching system, belt feeding system, weighing system, pheumatic system, cement silo 100t, automatic control system with control room, and outside packing.
