product Description
XF-100 Concrete Recycling Plant, also known as concrete sand and stone separator, which is the core equipment of the concrete recovery system. it is mainly used for the cleaning of mixing truck, and the separation, collection, reuse of the waste concrete. It is applicable to river, reservoir, coal yard and mixing plant.
The washing system for XF-100 Concrete Recycling Plant with double trucks system (two parking lots for mixer truck). It can increase or decrease according to customer’s requirements. The system allows increasing to five trucks at the same time utmost.

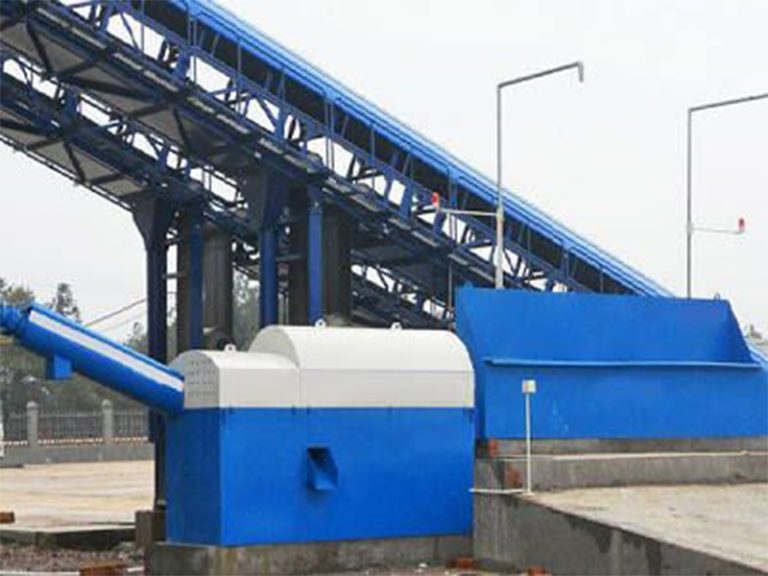

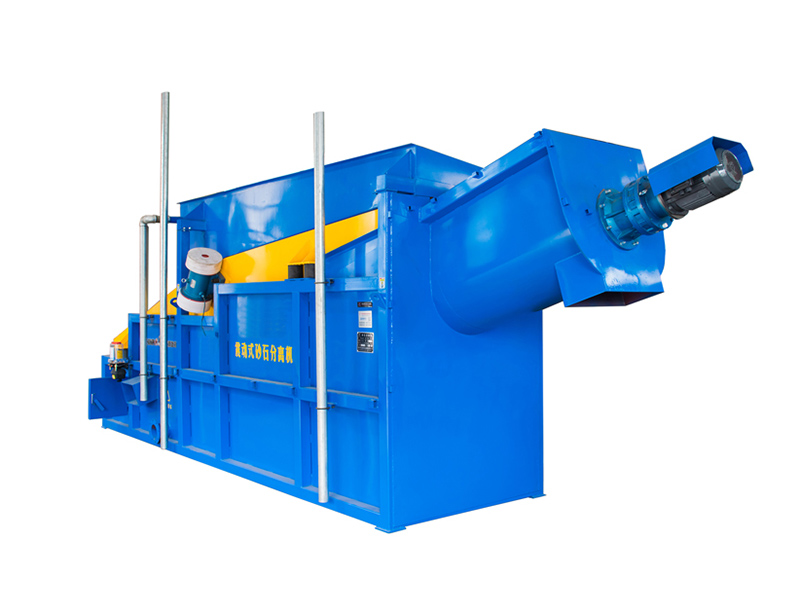

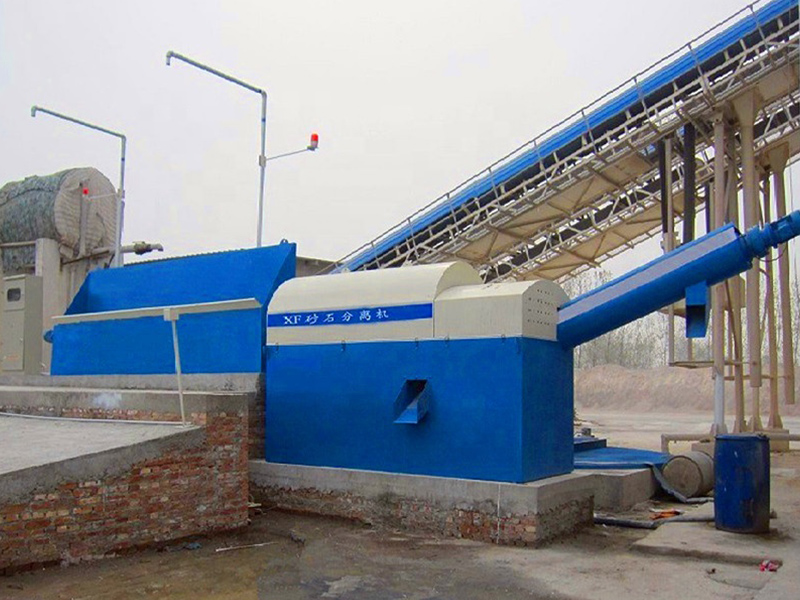

The concrete recycling plant is mainly composed of Guide chute, stone and sand separator, Screening screw conveyor, PLC control system,etc.The Concrete recycling plant is the core equipment of concrete recycling system.

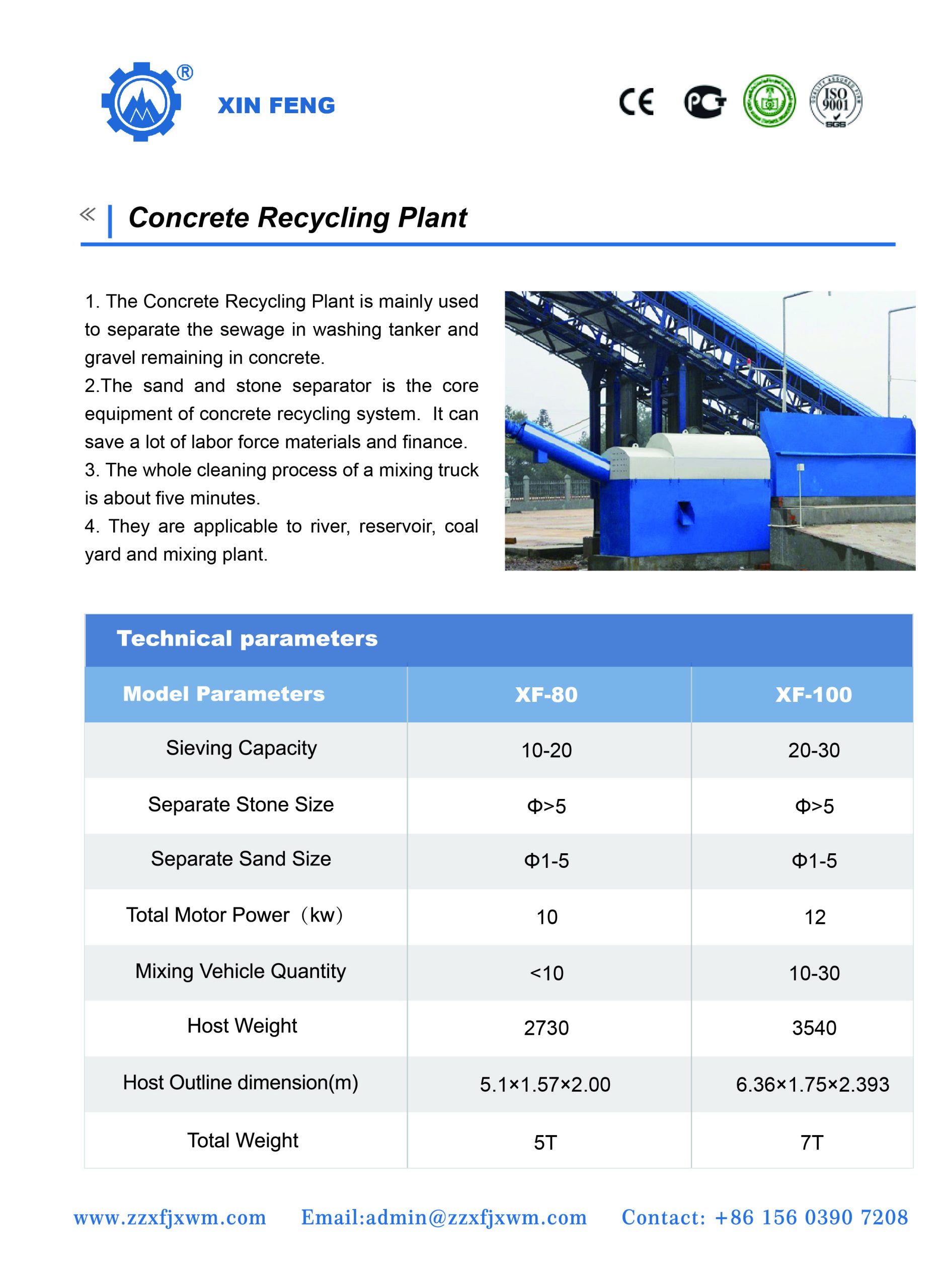

Parameter
| Model | XF-80 | XF-100 |
| Screening Capacity (t/h) | 10-20 | 20-30 |
| Separate Stone Size(mm) | >Φ5 | >Φ5 |
| Separate Sand Size(mm) | Φ1-Φ5 | Φ1-5 |
| Total Power of Motors (kw) | 10 | 12 |
| Weight (t) | 5 | 7 |
| Overall Size(mm) | 5100*1570*2000 | 6360×1750×2393 |
| Qty. of Mixer Trucks | 1 | 10-30 |
| No. of Washing Parking | <10 | 2 |
| Electric Control System | PLC Auto Control | PLC Auto Control |
Features
- Simple structure in linear type, easy in installation and maintain.
- Adopting advanced world famous brand components in pneumatic parts,e lectric parts and operation parts.
- Can be used to match the concrete batching plant and also can be used indenpendently.
- Low investment, high return
- Stone removal system reduces screen hole clogging
- High load design, long service life
Working Process

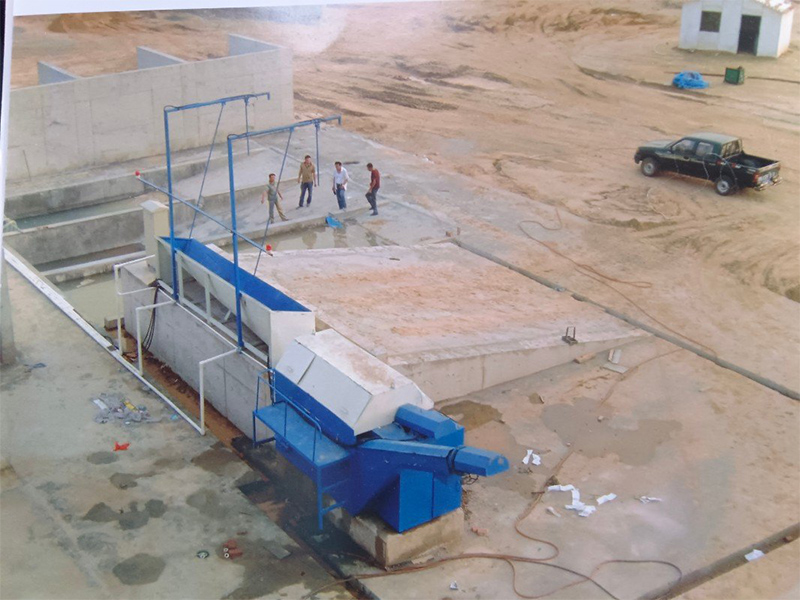

When the mixer car back to the set parking, the system will inject water and flush automatically. After roller washing, pour the waste water into the feeding hopper directly. Then clean and separate in the separator, and the separated materials were sent to the outlet respectively. Overflow water flows into sedimentation tank from the drainage ditch, then withdraw back by pump after three stages precipitation, and then recycle. The whole cleaning process of the mixing truck is about five minutes.
