product Description

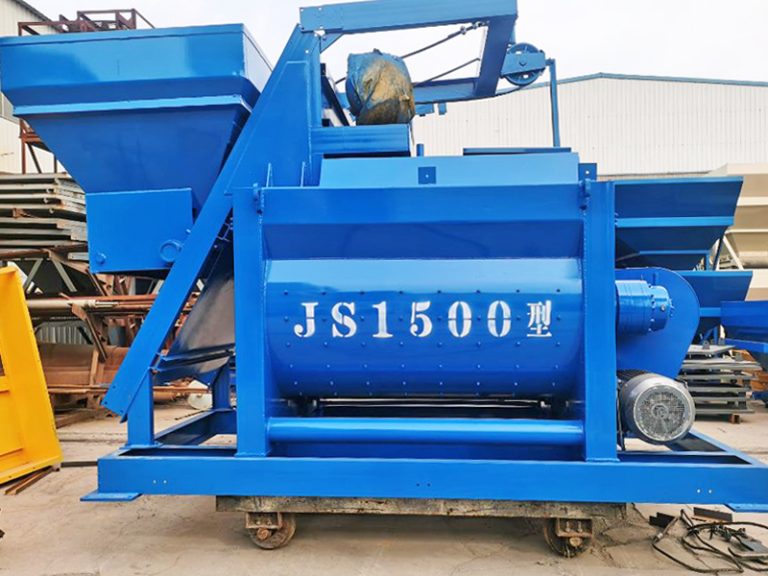

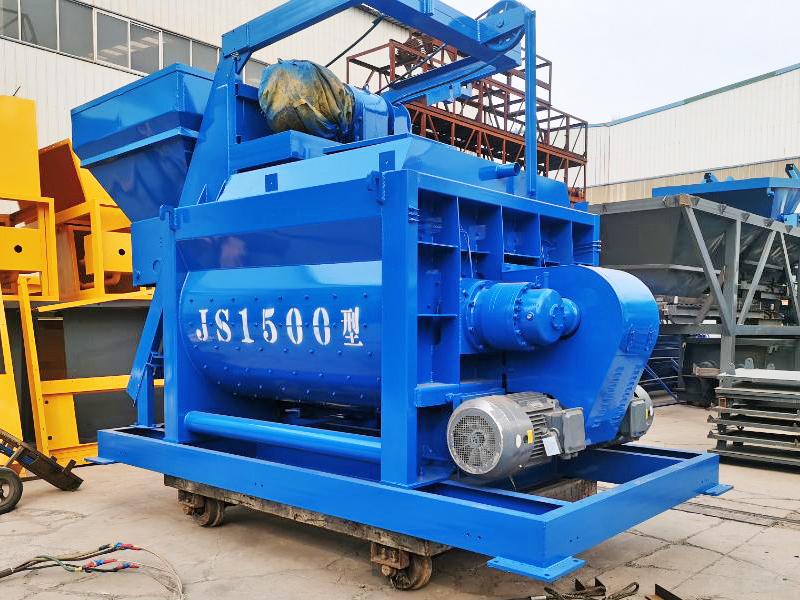

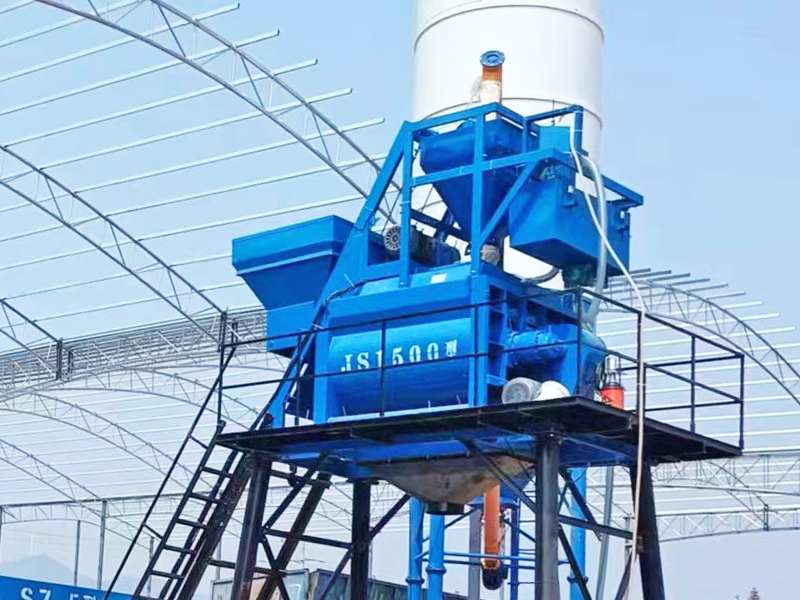

JS1500 series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.
JS1500 concrete mixer also called 1.5cubic meter mixer, it has the advantages of high-level automation, consistent mixing results, high productivity, simple operation, quick discharging and long service life, is one kind of multifunctional concrete mixing equipment.
Parameter
| Model | JS1500 | |
| Discharge capacity(L) | 1500 | |
| Charge capacity(L) | 2400 | |
| Theory productivity(m³/h) | ≤90/75 | |
| Max. aggregate diameter(mm) | ≤60/80 | |
| Working cycle time(s) | 60/72 | |
| Total weight(kg) | 7500 | |
| Outline dimension(mm) | Transporting | 4200×2200×3000 |
| Operating | 9530×3400×1080 | |
| Agitating vane | Rotational speed (r/min) | 23.5 |
| Count | 2×8 | |

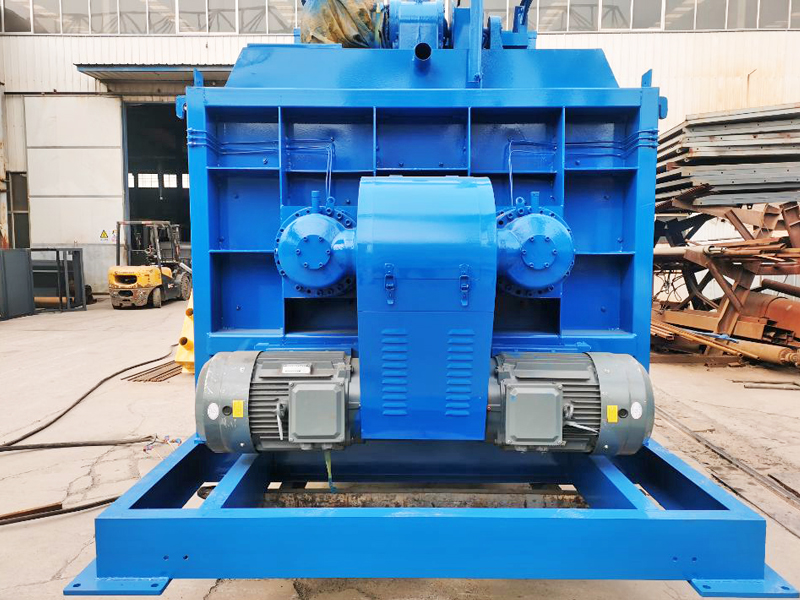

| Agitator motor | Model | Y180L–4 |
| Power(KW) | 2×30 | |
| Hoist motor | Model | YEZ180L–4 |
| Power(KW) | 18.5 | |
| Pump motor | Model | 80JDB–45 |
| Power(KW) | 3 | |
Features
Mixing Elements
There are multigroup mixing arms and blades to ensure the mixture in the mixing tank thoroughly doing vertical and horizontal blend so as to achieve the purpose of uniform mixing.
Liner Plates
High Wear-Resistant Chromium-Manganese Alloys Liners and Blades.The liner plates of JS1500 is composed of arc liner and end liner: the liner is made of hi-chromium alloy while the end liner is made of high-manganese steel and both of them have high-level wear resistance that are suitable for the concrete mixing standard.High Wear-Resistant Chromium-Manganese Alloys Liners and Blades.
Shaft End Sealing System
For horizontal shaft concrete mixer, the mixer shafts are always in the concrete admixtures with high corrosivity, so if there is no reliable shaft end sealing device, they may be damaged within a short period that in serious cases can cause mortar leakage so as to influence the gradation of the concrete. JS1500 mixer adopts multiple productive layer shaft end sealing system to effectively avoid the mortar leaking.
Hydraulic Discharging System
The discharging door is at the bottom of the mixer and is controlled by hydraulic system to do discharging work. The open and close position of the discharge door can be set at a random angle and you can regulate the sealing position to ensure the fine sealability of the door.
