product Description

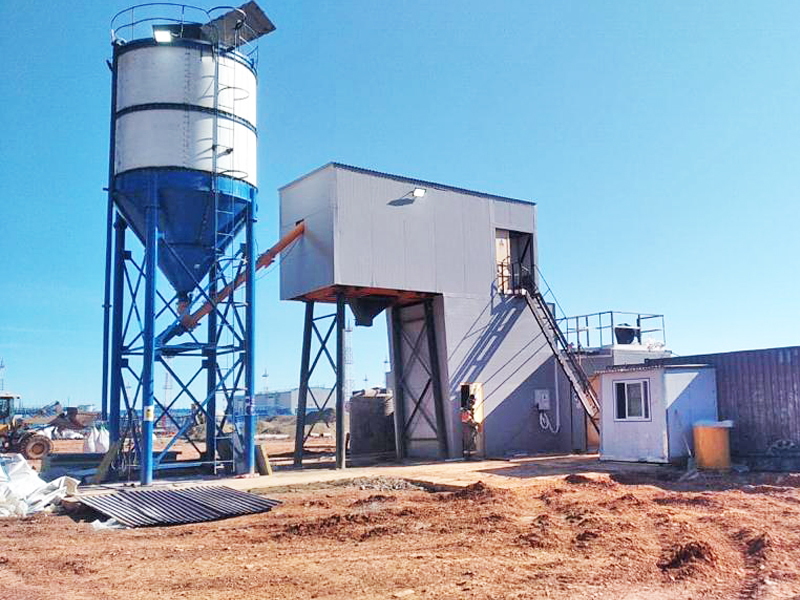

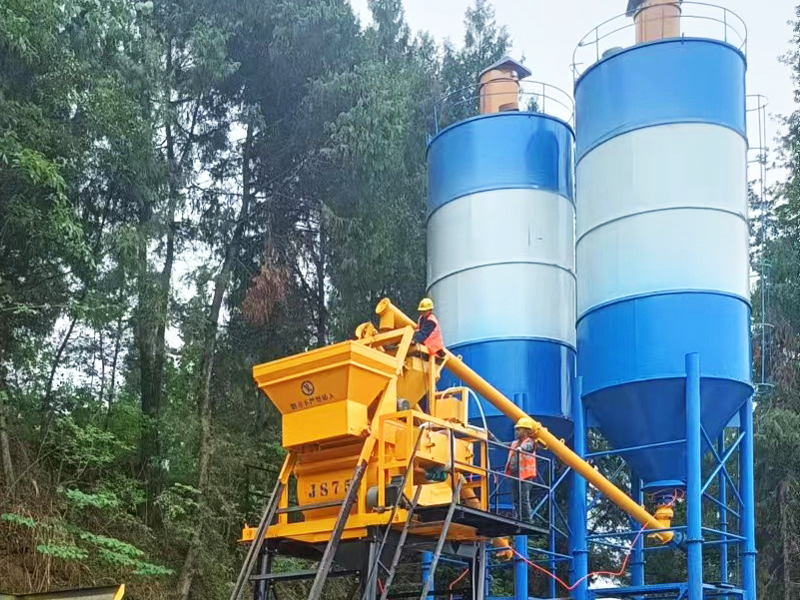

A cement silo is a steel construction product primarily used for the bulk storage of cement, fly ash, a key component in the production of concrete. The silo can match with screw conveyor to convey cement .

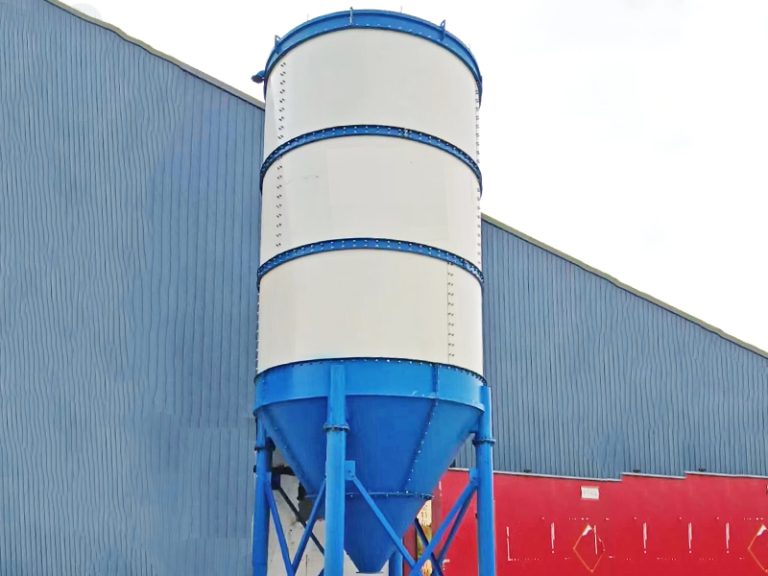

50t Small Bolted Cement silo is the smallest model with cheap price, it is composed of steel body structure, ladder, guardrail, feeding pipe, dust collector, pressure safety valve, discharge valve, etc.
The sheet-assembled bolted cement silo is designed for easy transportation,1x40HQ container can load 4sets 50t bolted silos.
Parameter
| Type | Volume | Total Weight | Tank diameter | Tank height | Total height | Matched host | Matched screw conveyor |
| SNC 50 | 50T | 4.2T | 3m | 5.4m | 12m | JS500 | LSY185-6 |
| SNC 100 | 100T | 5T | 3m | 12.4m | 18m | JS1000 | LSY200–9 |
| SNC 150 | 150T | 5.5T | 3.2m | 16.5m | 18.6m | JS1500 | LSY250–9 |
| SNC 200 | 200T | 10.2T | 4.5m | 13.6m | 18.6m | JS2000 | LSY300–9 |
| SNC 300 | 300T | 11.8T | 5.5m | 15.6m | 18.6m | JS3000 | LSY300–9 |
| SNC 500 | 500T | 28T | 6m | 15.6m | 18.6m | ||
| SNC 625 | 625T | 29.5T | 6.5m | 16.6m | 18.6m |
Features
Easy to Transport
As it is modular pieced structure , it can save shipment space and it is convenient to transport.
Wide Applications
Except cement, it also can store fly ash, fine ore, etc.
Good Sealing Effect
Easy installation and disassemble.
