100t Cement Silo

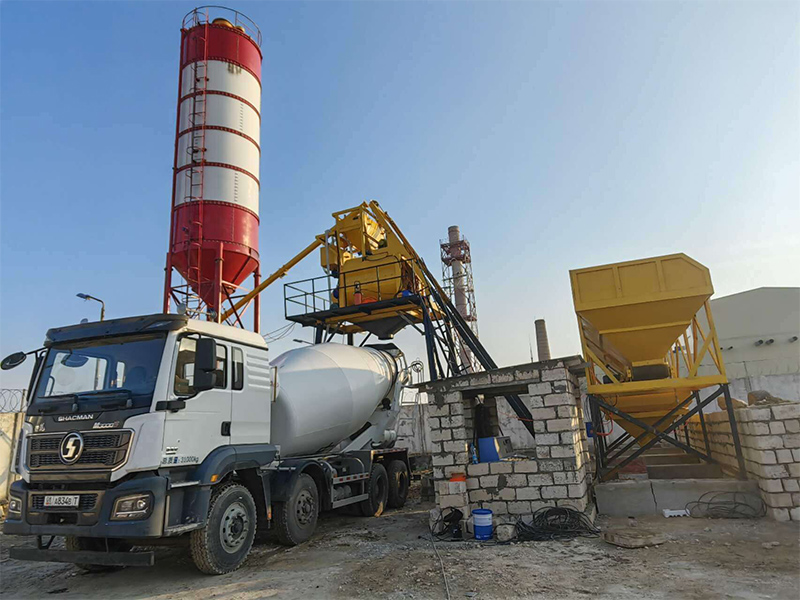

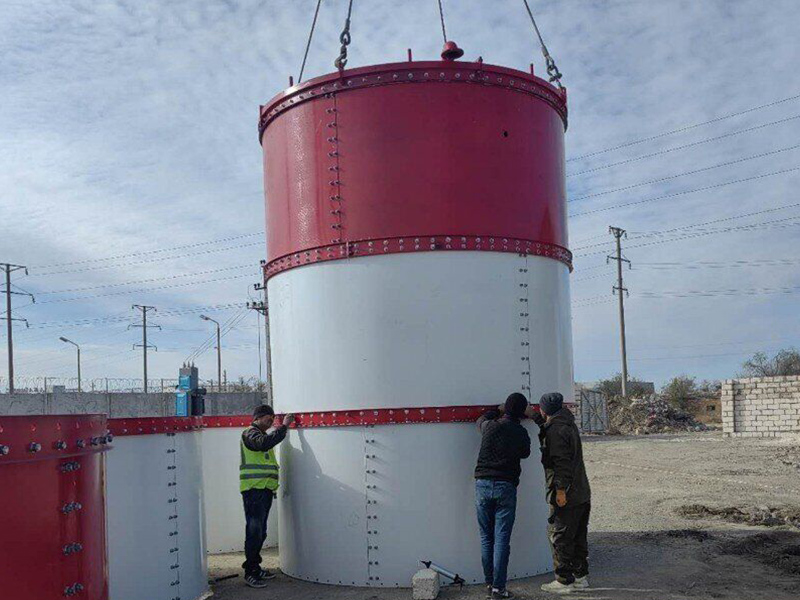

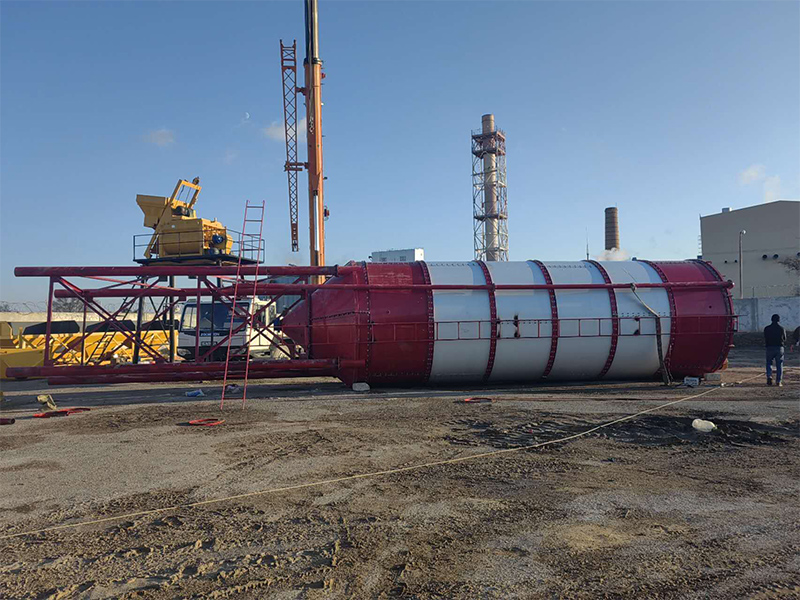

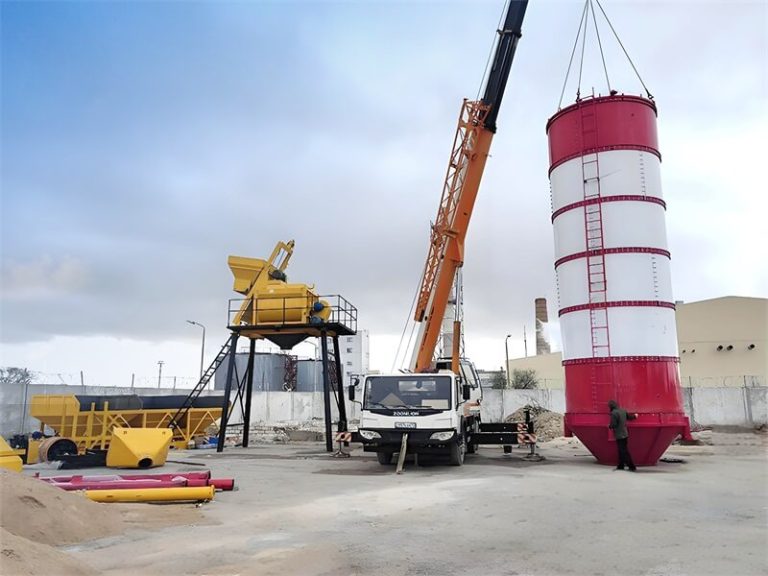

Description:100ton bulk bolted cement silos are vertical structures used for large-scale storage of powdered cement or flyash. It can be equipped with material extraction systems such as screw conveyors, bucket elevators, or pneumatic systems.
Volume:100T
Total Weight:4T
Tank diameter:3m
Tank height:12.4m
Total height:18m
TypeVolumeTotal WeightTank diameterTank heightTotal heightMatched  hostMatched screw conveyor
SNC 5050T4.2T3m5.4m12mJS500LSY185-6
SNC 100100T5T3m12.4m18mJS1000LSY200–9
SNC 150150T5.5T3.2m16.5m18.6mJS1500LSY250–9
SNC 200200T10.2T4.5m13.6m18.6mJS2000LSY300–9
SNC 300300T11.8T5.5m15.6m18.6mJS3000LSY300–9
SNC 500500T28T6m15.6m18.6m
SNC 625625T29.5T6.5m16.6m18.6m
Double Concrete Batching Plant
A Double or twin concrete plant means that there are two independent plants at the same site. Both are installed and started up at the same time.
Central Mix Concrete Plant
A central mix concrete plant is a specialized concrete batching facility designed to produce ready-to-use concrete by mixing all the ingredients, including water, at a central location before delivery to the construction site.
Concrete Pump Truck
A common type of concrete pump for large scale construction projects is known as a boom concrete pump, because it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately. It is attached to a truck or a semi-trailer. Boom pumps are capable of pumping at very high volumes and are less labor intensive to operate when compared to line or other types of concrete pumps.
