product Description
The Φ219 screw conveyor is a new type of transport equipment. It is mainly used for transporting cement, fly ash material in concrete mixing station and other suitable places. It can also match with other transport equipment to achieve joint transportation or independent transportation.

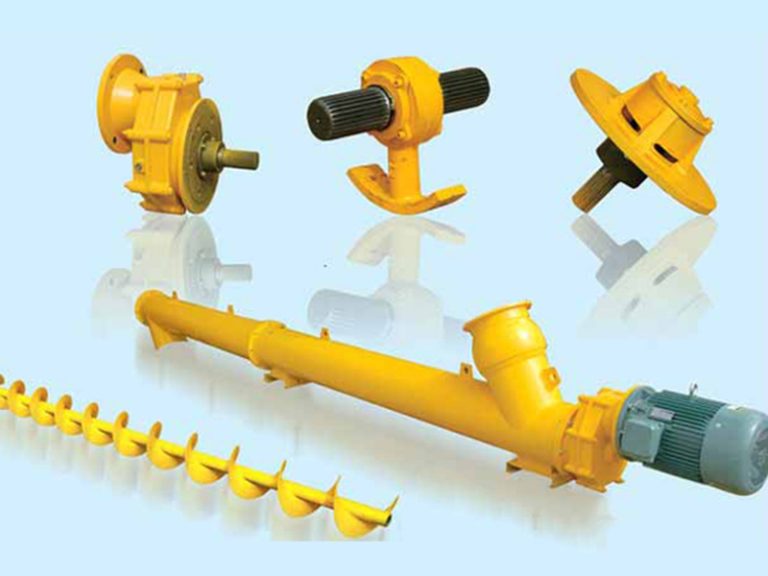

Screw conveyor is composed of feeding inlet, discharge opening, electric motor, retarder, bearing, helical blade, closed trough, hanging bearing, bearing spiral, cardan joint, suction flange, outer tube, connection flange, etc.
Parameter
| Model | Φ219 | Φ273 | Φ325 | Φ407 |
| Metric diameter(mm) | 185 | 237 | 305 | 387 |
| Length(m) | 4-12 | 6-12 | 6-13 | 6-13 |
| Rotary speed(r/min) | 209 | 209 | 174 | 153 |
| External case diameter(mm) | Φ219 | Φ273 | Φ325 | Φ407 |
| Working angle(0) | ≤45° | ≤45° | ≤45° | ≤45° |
| Conveyor capacity(t/h) | 35 | 50 | 75 | 110 |
| Motor Power(kw) | 4-11 | 7.5-15 | 11-18.5 | 11-22 |
Characteristics
- The conveyor made of high-quality seamless has good rigidity and is easy to dismount and maintain.
- One-time-molding helical blades are welded to the central tube, which can achieve complete balance.
- With high-quality reducer and heavy-design, it has the advantages of large torque, low noise, no oil leakage, long service life.
- The universal ball equipped makes it convenient for installation and adjustment.
- It is equipped with high-quality bearings to ensure efficient conveying.

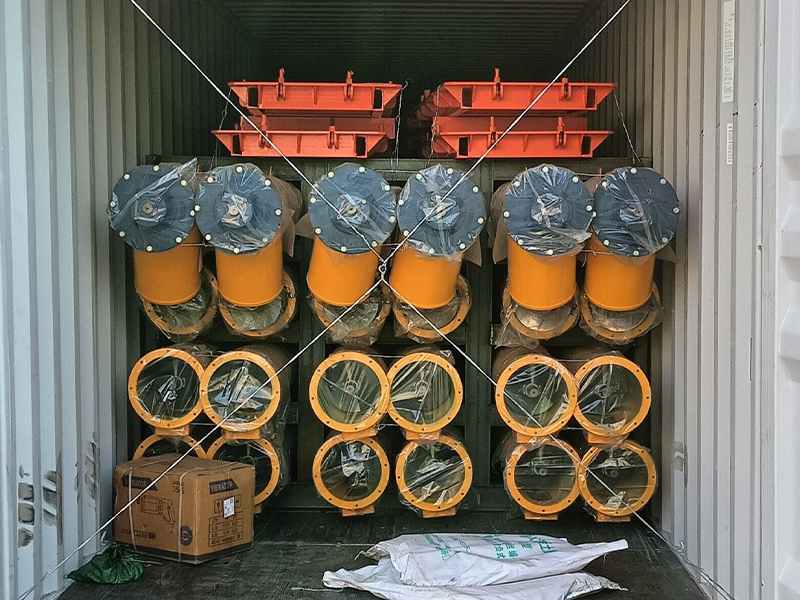

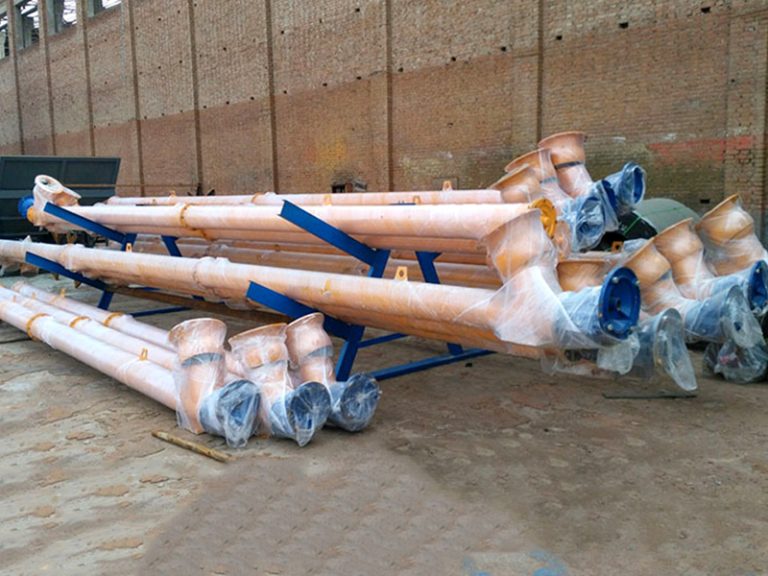

- We have a lot of stock for screw conveyor in general diameters : 219mm，273mm, 325mm. And the products size can also be customized according to customer’s requirements.

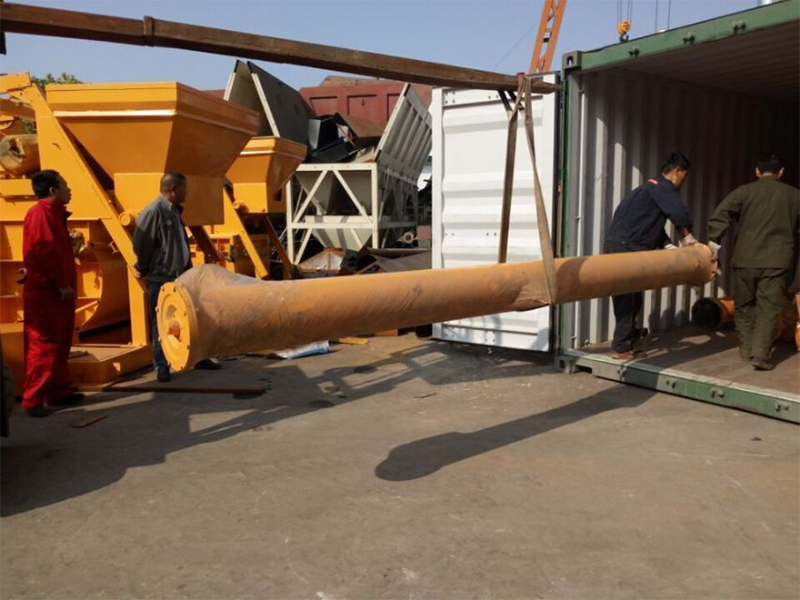

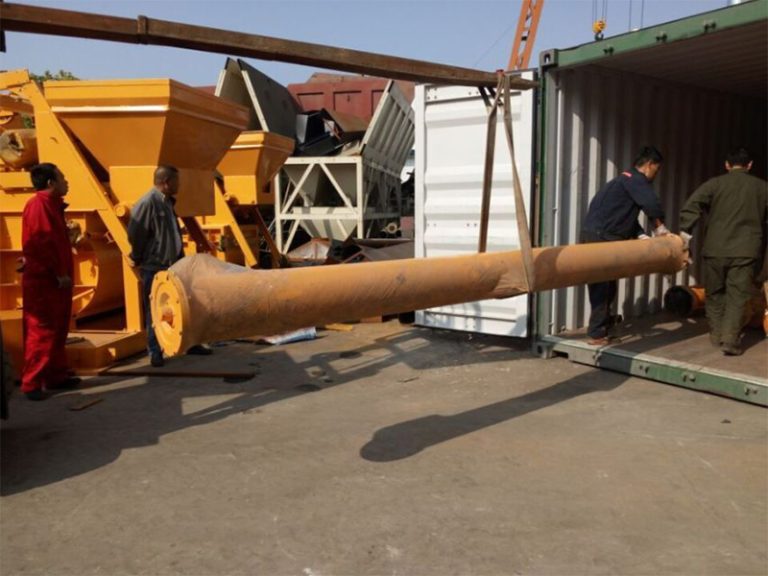

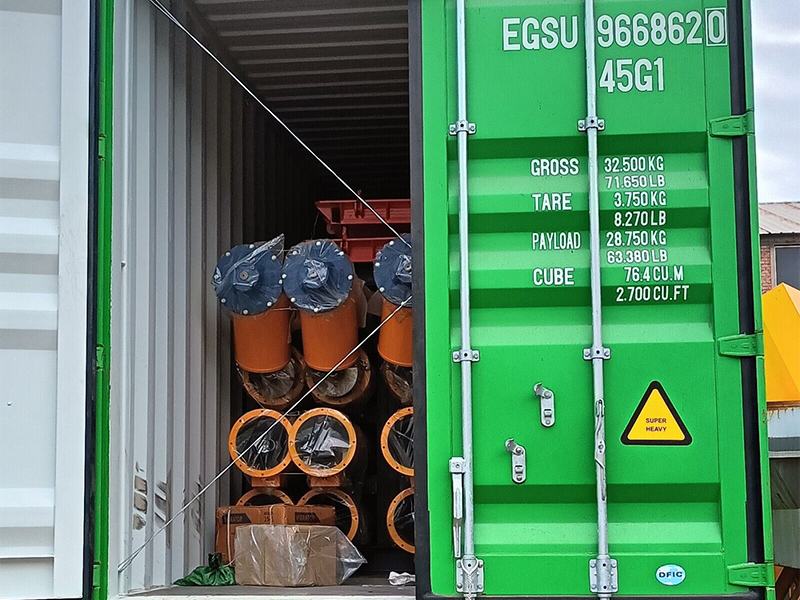

- The standard assembly makes it more convenient to transport.
- Welcome customization
Application
01.
Screw conveyors is mainly used for transporting cement and fly ash in concrete mixing plant.
02.
Screw conveyor is widely used in various kinds of materials handling, such as coal, cement, agriculture, metallurgy, chemical, food and so on.
03.
Screw conveyors is not applicable to transport material which is high viscosity and easy to be curdled.
04.
The appropriate ambient temperature for screw conveyor is 20℃ to 50℃.
05.
The material temperature should be less than 200℃.
06.
The degree of inclination angle should be less than or equal to 45.
